Compact Size Infrared Temperature Sensor Saving Mounting Space Long Optical Spectrum 8~14μm Non-coantact Temperature Transmitter High Temperature Nonmetallic Surface Temperature Measurement

$56.80

Output: 2 wire 4-20mA

2 wire 4-20mA
0-5V / 0~10V
4 wire 4-20mA
RS485
Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Temperature Measurement
Tags: Infrared Pyrometer Infrared Temperature Sensor Non-contact Temperature Measurement Temperature Sensor Temperature Transmitter
Description

            • Essential Specifications:

              Power Supply: 12~24VDC, 20mA
              Measuring Range: 0-500℃; -20-800℃ (customizable from the wide range)
              Temperature Resolution: 0.1℃
              Measuring Accuracy: ±1.5%F.S or ±2.5℃ (whichever is greater)
              Repeatability: ±0.5% or ±1℃ (whichever is greater)
              Output Signal: 4-20mA; 0-5V; 0-10V; RS485
              Working Temperature: -20~60℃
              Related Humidity: 10-95% (Noncondensing)
              Optical Spectrum: 8-14μm
              Optical Resolution: 20:1
              Response Time: 75ms
              Emissivity: 0.95; 1.0 (default)

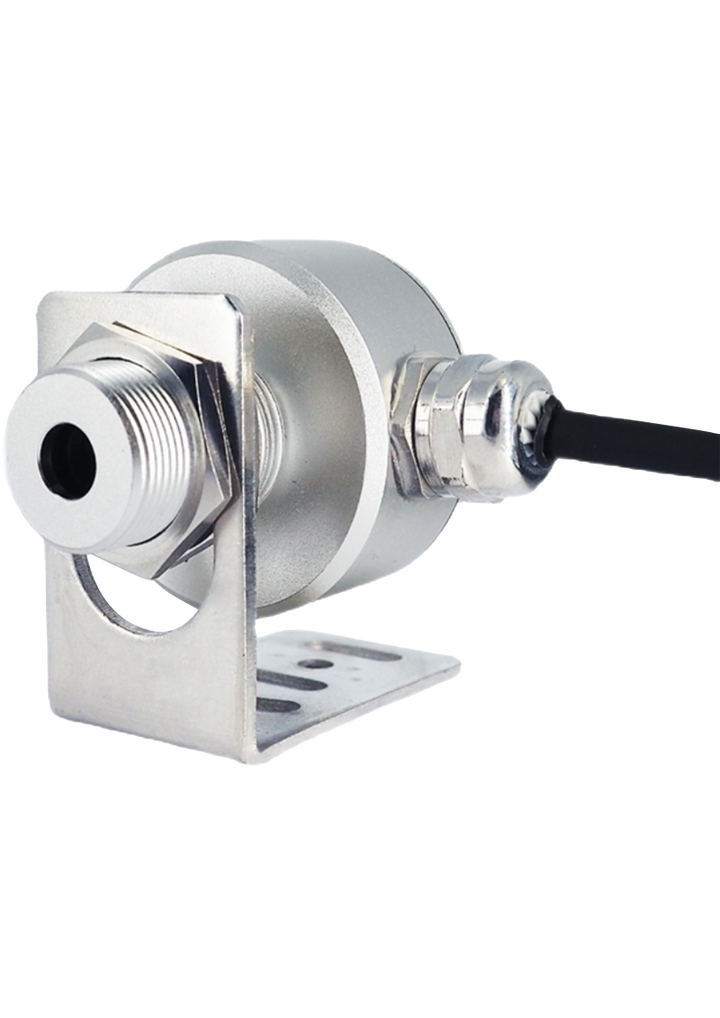

              Sensor Housing: Aluminum Alloy, thread M18*1, 44mm long, with mounting bracket

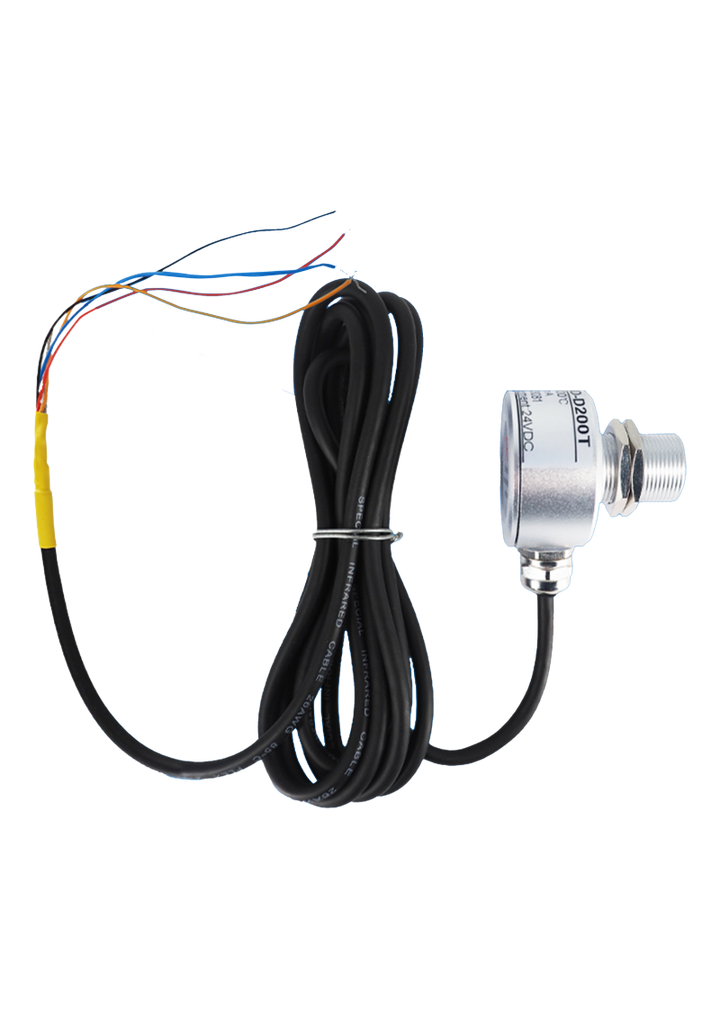

              Cable Length: 2m (Longer is optional)
              Waterproof Grade: IP64









            • Highlight Points Before Order:

              Measuring Medium
              Temperature Range
              Output Signal
              Mounting Distance
              Object Diameter
              Ambient Temperature
Additional Information
Output

2 wire 4-20mA, 0-5V / 0~10V, 4 wire 4-20mA, RS485
