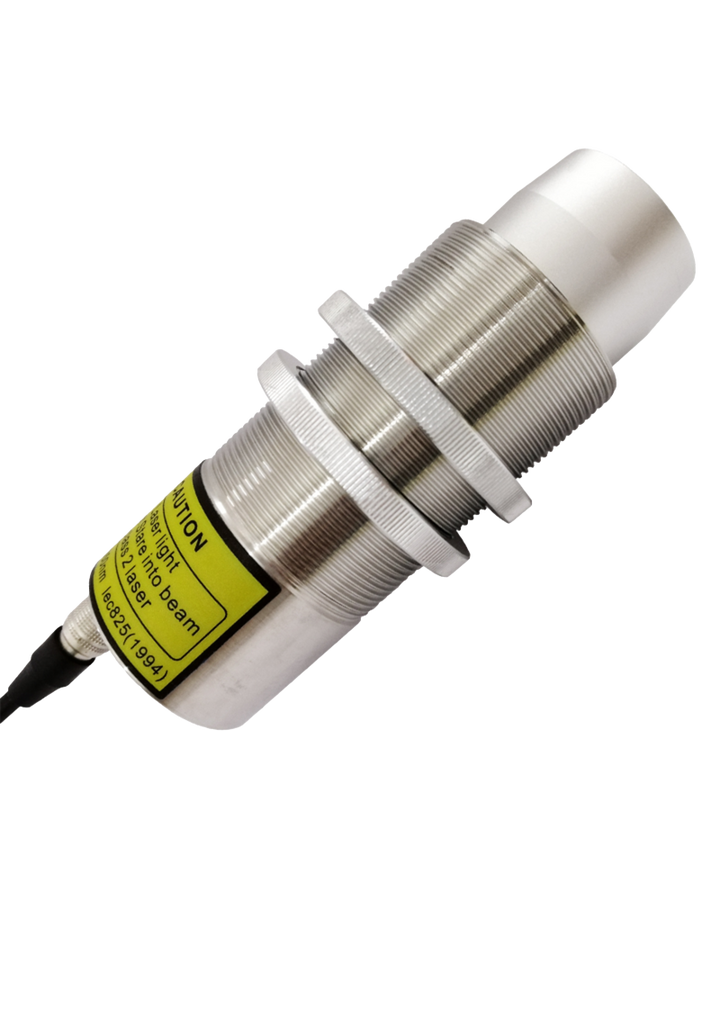

Complete Functional Infrared Temperature Sensor Short Optical Spectrum 1.0~2.6μm Non-coantact Temperature Transmitter High Temperature Metallic Surface Temperature Measurement Molten Aluminum
Description
-
-
-
-
-
-
Essential Specifications:
Power Supply: 12~24VDC
Max. Current: 200mA
Feature: Integrated coaxial central laser
Measuring Range: 250-1400℃; 600-2000℃; 250-2000℃; 600-2400℃; 700-3200℃
Temperature Resolution: 0.1℃
Measuring Accuracy: ±1%F.S
Repeatability: ±0.5℃
Output Signal: 4-20mA; 0-20mA; 0-5V; 0-10V; RS485
Working Temperature: -20~60℃ (up to 200℃ by protection of water cooling jacket)
Related Humidity: 10-95% (Noncondensing)
Optical Spectrum: 1.0μm; 1.6μm
Optical Resolution: 150:1
Object Diameter: 3.3mm (at 500mm of mounting distance); other diametres are customizable (smallest is 0.5mm)
Response Time: 0.5ms
Display: LCD, with 3 buttons
Emissivity: 0.001~1.1 (configurable, scale is 0.001)

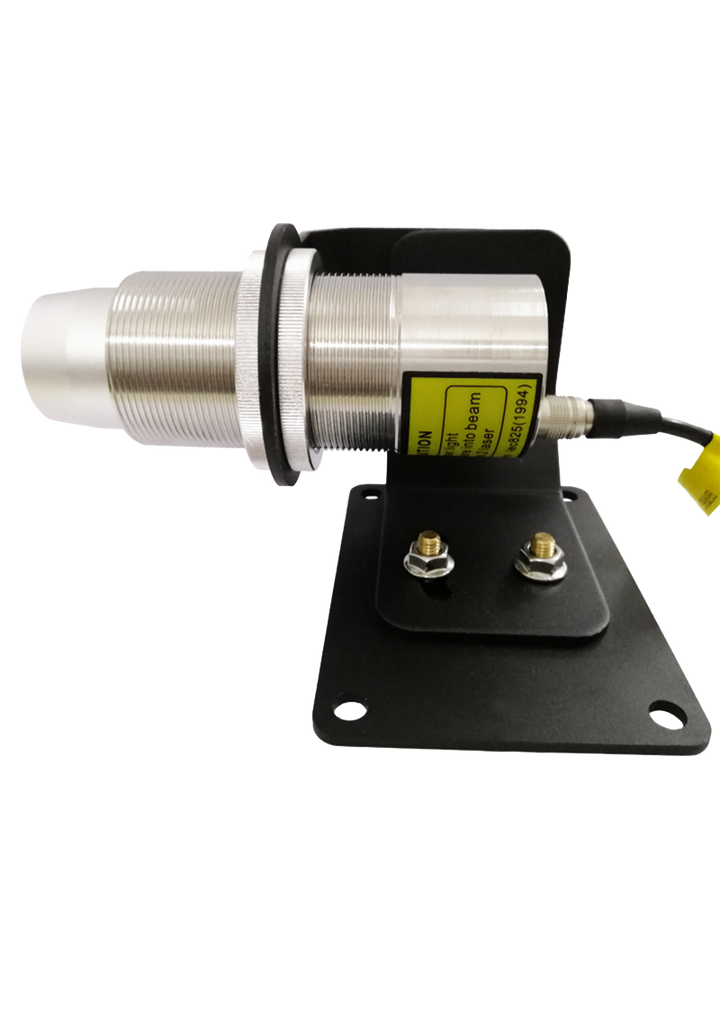

Sensor Housing: SS304, thread M45*1.5, 124mm long, with mounting bracket
Cable Length: 3m (Longer is optional)
Electrical Interface: Circular connector
Waterproof Grade: IP65
-
Highlight Points Before Order:
Measuring Medium
Temperature Range
Output Signal
Mounting Distance
Object Diameter
Ambient Temperature
-
-
-
-
-
Complete Functional Infrared Temperature Sensor Short Optical Spectrum 1.0~2.6μm Non-coantact Temperature Transmitter High Temperature Metallic Surface Temperature Measurement Molten Aluminum
$1,070.00
