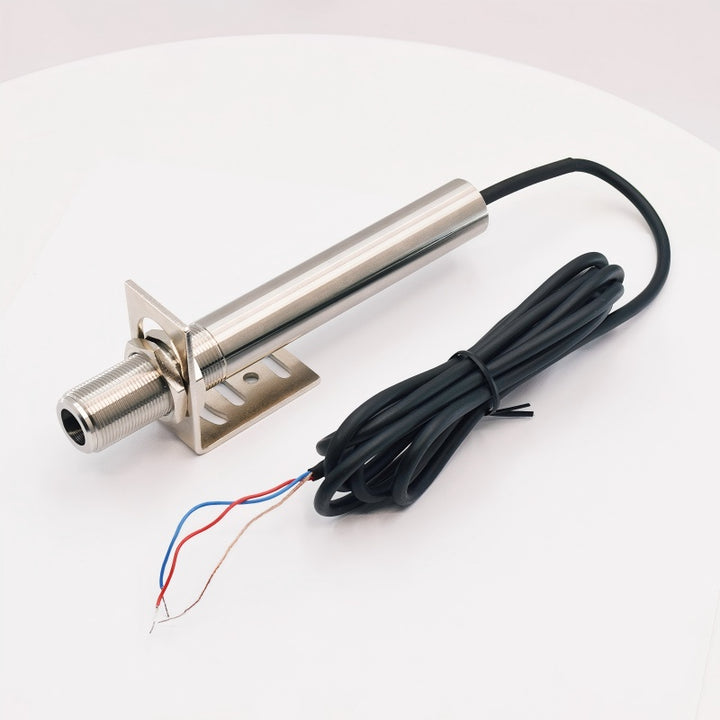

Economic Infrared Temperature Sensor Short Optical Spectrum 1.0~2.6μm Non-coantact Temperature Transmitter High Temperature Metallic Surface Temperature Measurement
Description
-
-
-
-
-
-
Essential Specifications:
Power Supply: 9V~24VDC
Max. Current: 50mA
Feature: Integrated coaxial dual laser
Measuring Range: 350-1200℃; 500-1400℃; 700-1700℃; 800-2000℃
Temperature Resolution: 1℃
Measuring Accuracy: ±1.%F.S
Repeatability: ±1℃
Output Signal: 4-20mA; RS485
Working Temperature: -20~60℃ (up to 120℃ by protection of wind cooling jacket)
Related Humidity: 10-95% (Noncondensing)
Optical Spectrum: 1.0μm; 1.6μm
Optical Resolution: 100:1
Response Time: 40ms
Emissivity: 1.0 (default)

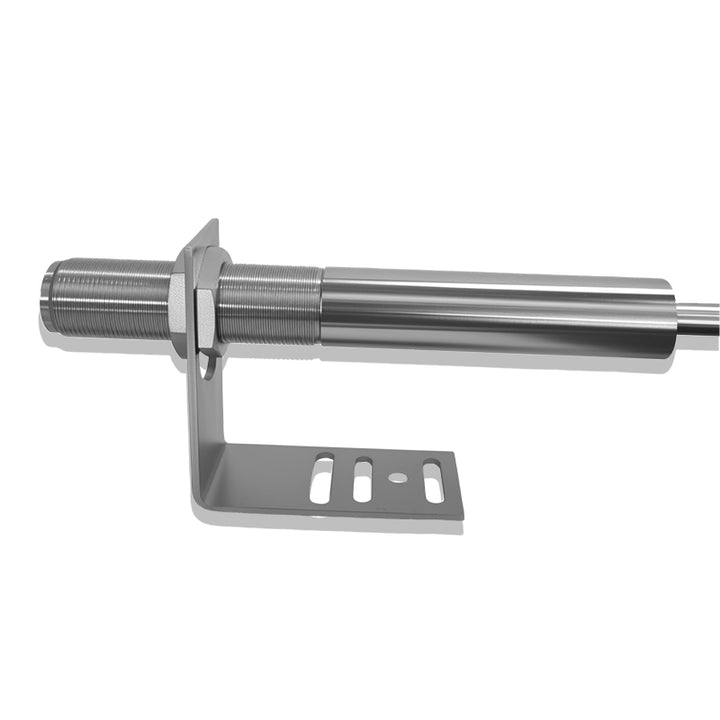

Sensor Housing: Aluminum Alloy, thread M18*1, 128mm long, with mounting bracket
Cable Length: 3m (Longer is optional)
Electrical Interface: Circular connector
Waterproof Grade: IP65
-
Highlight Points Before Order:
Measuring Medium
Temperature Range
Output Signal
Mounting Distance
Object Diameter
Ambient Temperature
-
-
-
-
-
Economic Infrared Temperature Sensor Short Optical Spectrum 1.0~2.6μm Non-coantact Temperature Transmitter High Temperature Metallic Surface Temperature Measurement
$186.00
