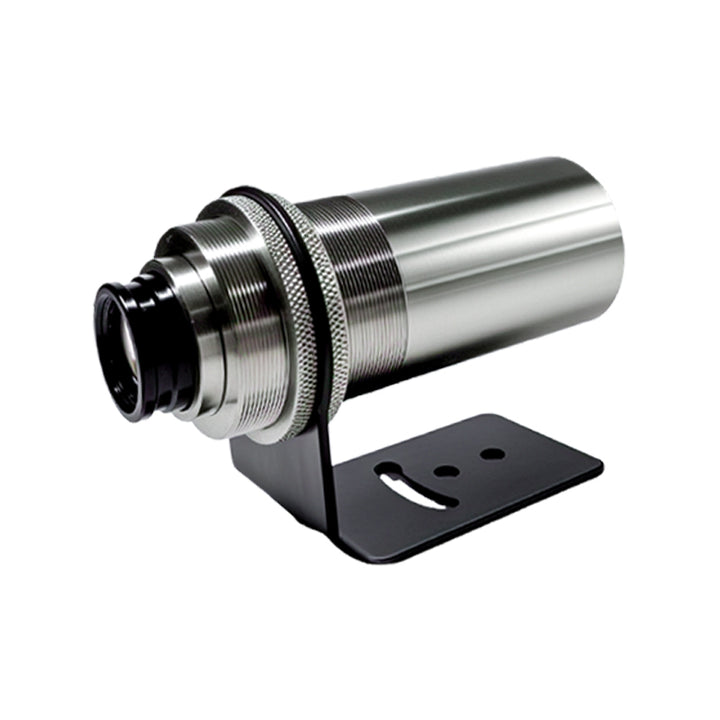

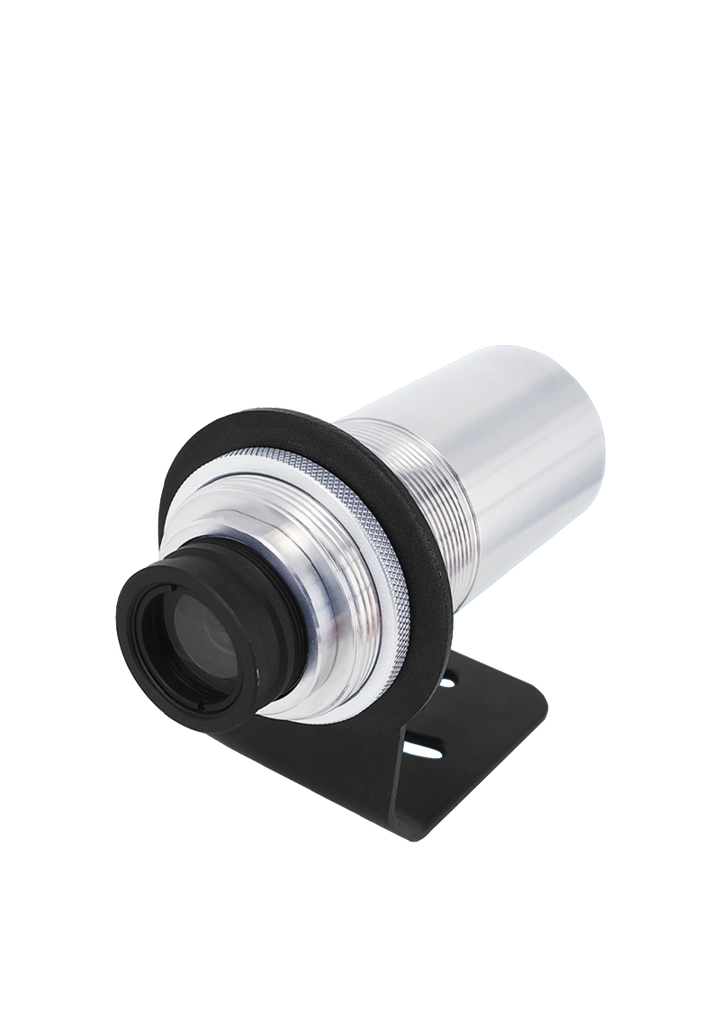

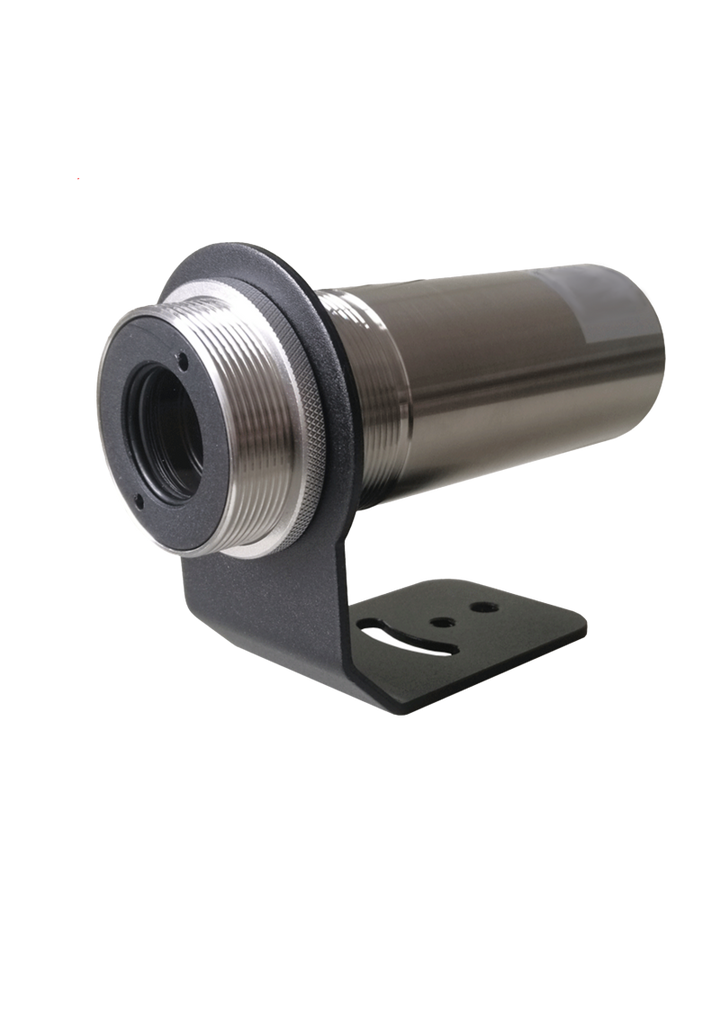

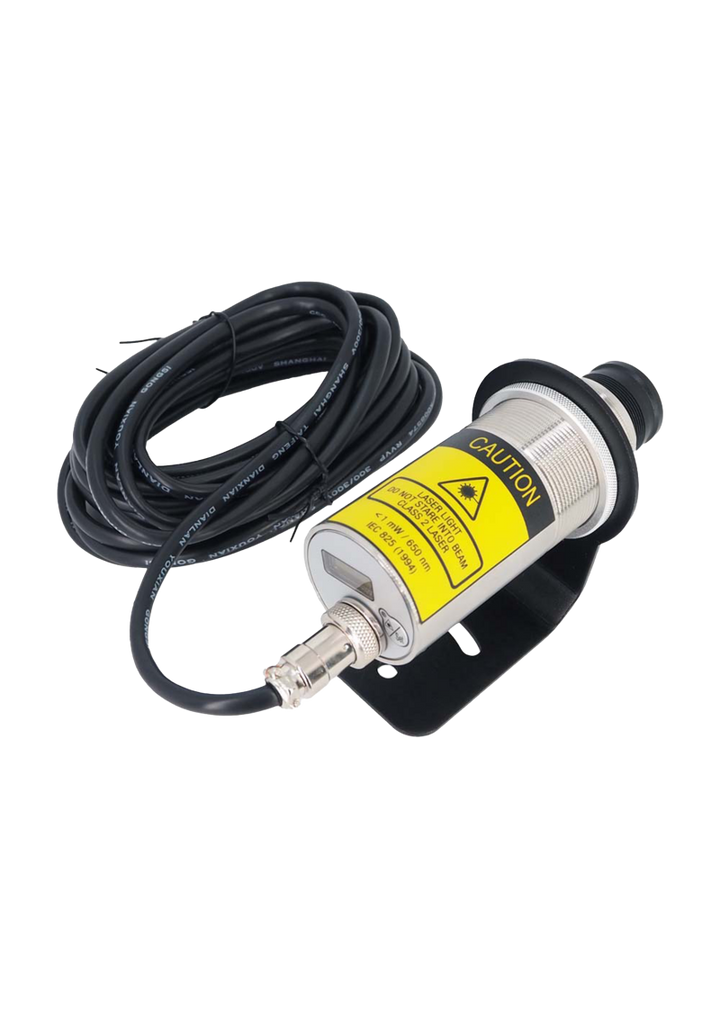

Enhanced Infrared Temperature Sensor Short Optical Spectrum 1.0~2.6μm Non-coantact Temperature Transmitter High Temperature Metallic Surface Temperature Measurement Molten Aluminum
Description
-
-
-
-
-
-
Essential Specifications:
Power Supply: 24VDC
Max. Current: 100mA
Feature: Integrated coaxial central laser
Measuring Range: 50-400℃; 50-500℃; 100-800℃; 150-1100℃; 200-800℃; 300-1400℃; 300-1600℃; 600-2000℃; 700-2600℃; others
Temperature Resolution: 1℃
Measuring Accuracy: ±0.5%F.S
Repeatability: ±0.5℃
Output Signal: 4-20mA; RS485
Working Temperature: -20~60℃ (up to 150℃ by protection of water cooling jacket)
Related Humidity: 10-95% (Noncondensing)
Optical Spectrum: 1.0μm; 1.6μm; 2.6μm
Optical Resolution: 150:1
Object Diameter: 20mm (at 1700mm of mounting distance); other diametres are customizable (smallest is 2mm)
Response Time: 10ms
Display: LCD, with one button
Emissivity: 0.100~1.099 (configurable, scale is 0.001)
Sensor Housing: SS304, thread M45*1.5, 114mm long, with mounting bracket
Cable Length: 3m (Longer is optional)
Electrical Interface: Circular connector
Waterproof Grade: IP65
-
Highlight Points Before Order:
Measuring Medium
Temperature Range
Output Signal
Mounting Distance
Object Diameter
Ambient Temperature
-
-
-
-
-
Additional Information
| Output |
4-20mA, RS485 |
|---|
Enhanced Infrared Temperature Sensor Short Optical Spectrum 1.0~2.6μm Non-coantact Temperature Transmitter High Temperature Metallic Surface Temperature Measurement Molten Aluminum
$610.00
