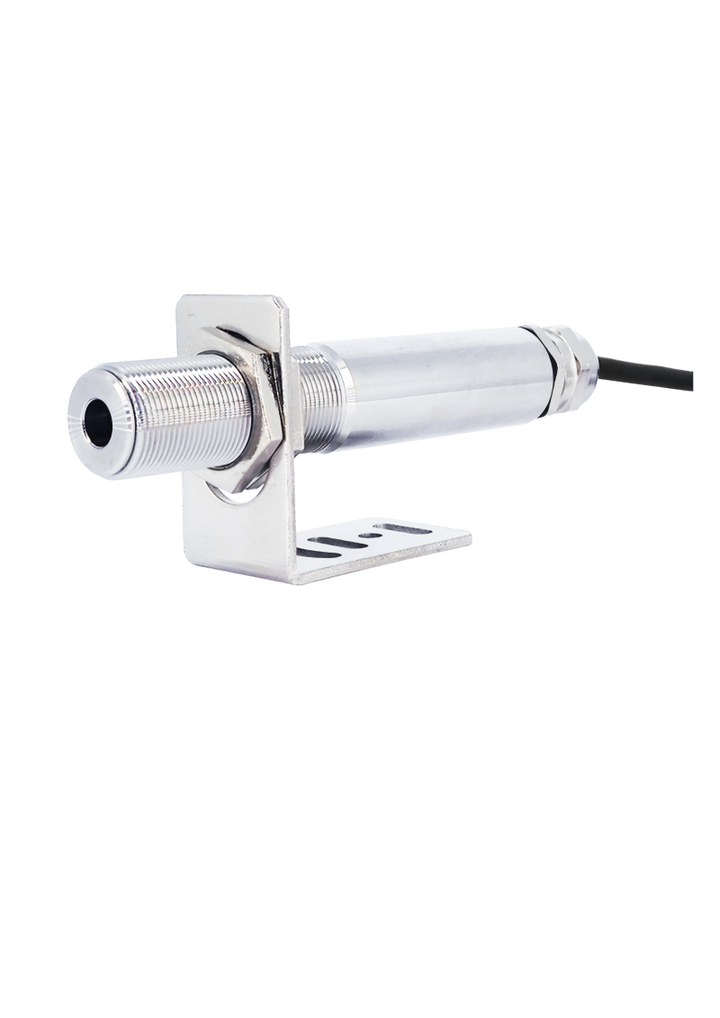

Infrared Temperature Sensor Long Optical Spectrum 8~14μm Non-coantact Temperature Transmitter High Temperature Thermometer Nonmetallic Surface Temperature Measurement
Description
-
-
-
-
-
-
Essential Specifications:
Power Supply: 12~24VDC; 3.3V DC (optional)
Max. Current: 50mA
Measuring Range: 0-500℃; -20-1200℃ (customizable from the wide range)
Temperature Resolution: 0.1℃
Measuring Accuracy: ±1%F.S or ±2℃ (whichever is greater)
Repeatability: ±0.5% or ±1℃ (whichever is greater)
Output Signal: 4-20mA; 0-5V; 0-10V; RS485
Working Temperature: -20~60℃ (up to 120℃ by protection of wind cooling jacket)
Related Humidity: 10-95% (Noncondensing)
Optical Spectrum: 8-14μm
Optical Resolution: 30:1 (customizable to 4:1; 15:1; 25:1)
Response Time: 150ms (customizable to 10ms; 50ms)
Emissivity: 0.95 (1.0 is optional)

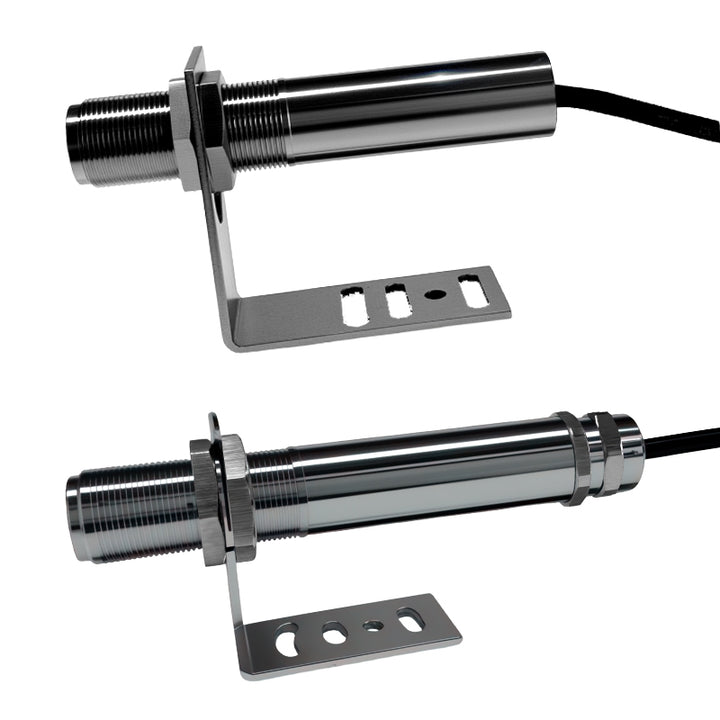

Sensor Housing: SS304, thread M18*1, 106mm long, with mounting bracket
Cable Length: 2m (Longer is optional)
Waterproof Grade: IP65
-
Highlight Points Before Order:
Measuring Medium
Temperature Range
Output Signal
Mounting Distance
Object Diameter
Ambient Temperature
-
-
-
-
-
Additional Information
| Output |
2 wire 4-20mA, 0-5V / 0~10V, 4 wire 4-20mA, RS485 |
|---|
Infrared Temperature Sensor Long Optical Spectrum 8~14μm Non-coantact Temperature Transmitter High Temperature Thermometer Nonmetallic Surface Temperature Measurement
$118.00
