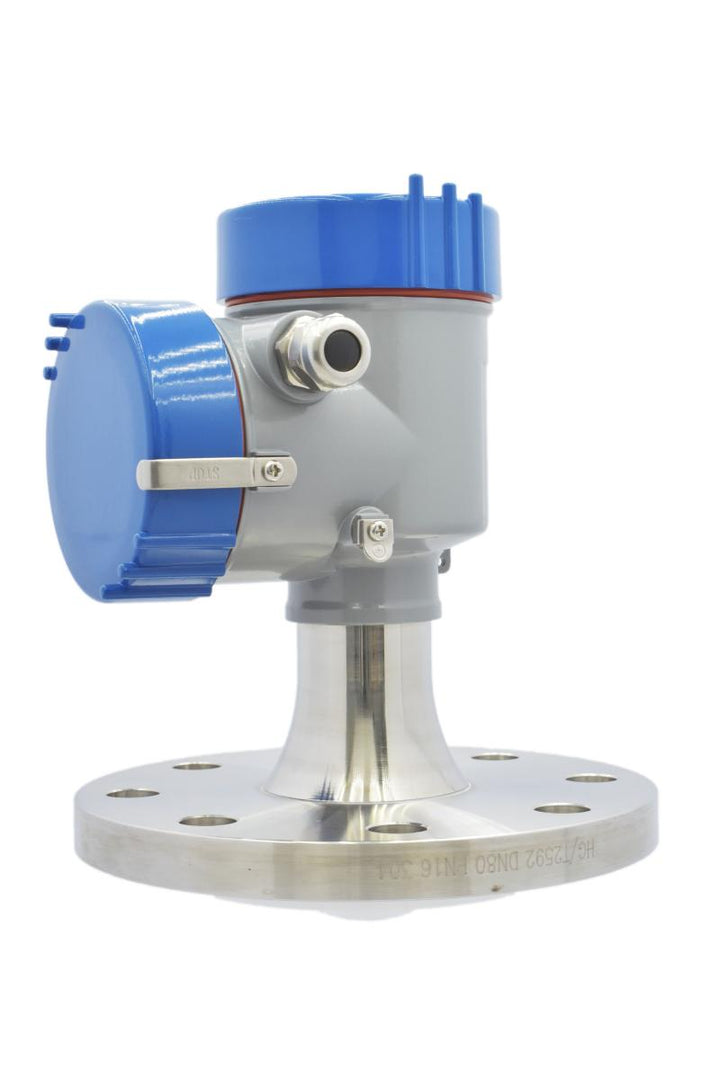

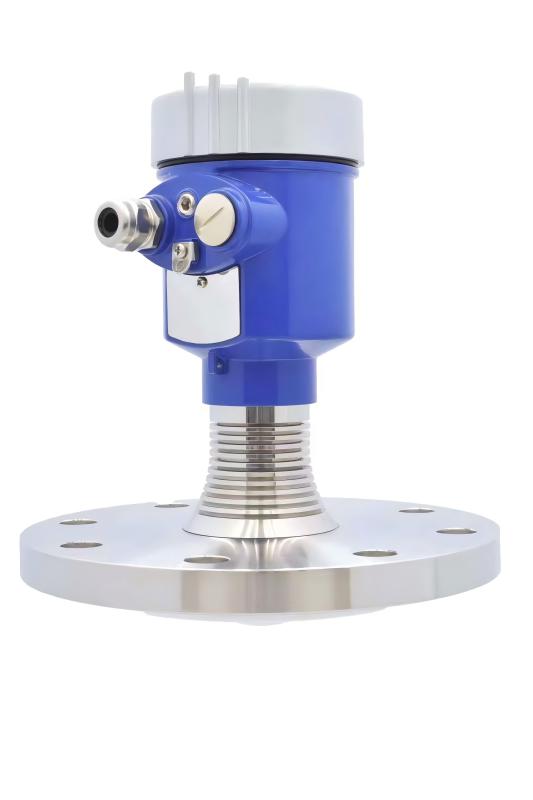

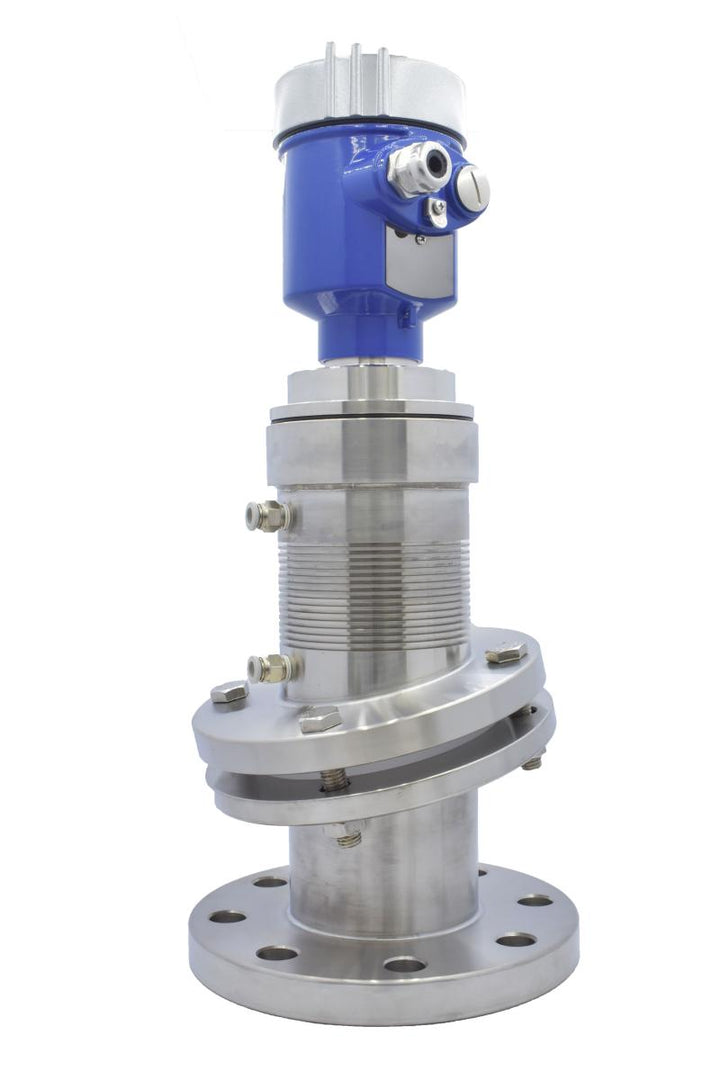

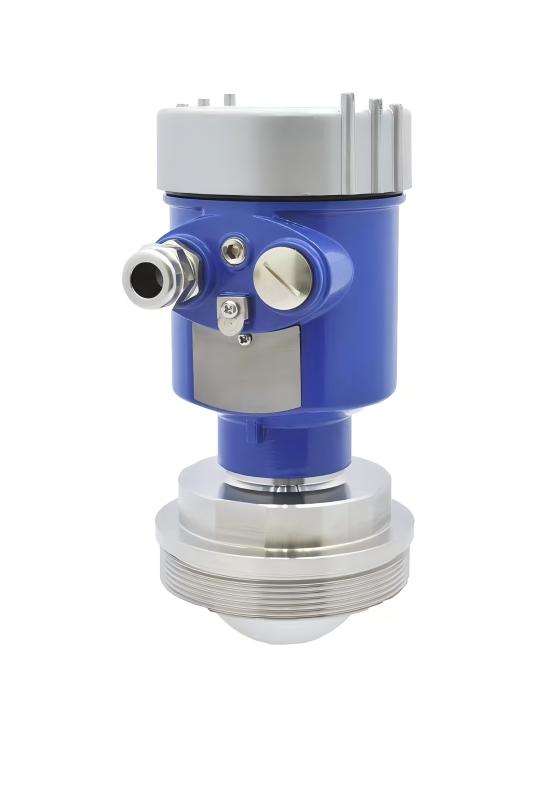

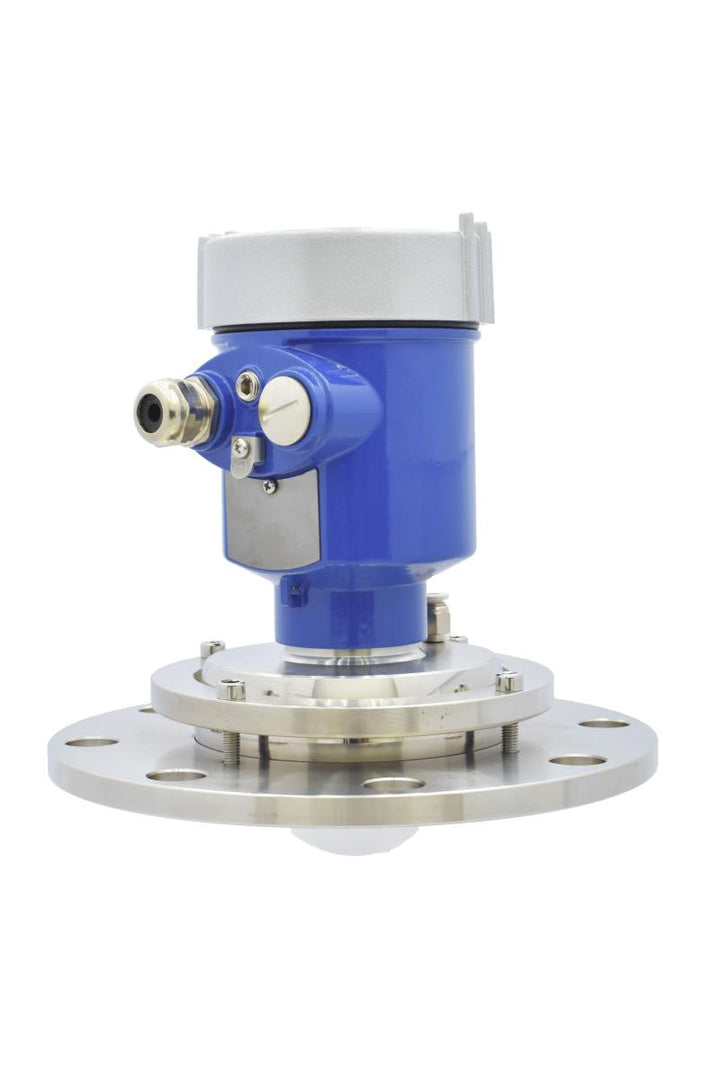

80GHz Radar Level Transmitter Non-contact Radar Level Meter High Frequency Radar Level Sensor Corrosive Liquids Level Measurement Solid Level Flying Ash Level

$205.00

Antenna Size: 1.5 inch

1.5 inch
3.5 inch

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Level Measurement 推荐产品
Tags: Corrosive Liquids Level Level Meter Level Transmitter Radar Level Solid Level Water Level
Description

            • Essential Specifications:

              Measuring Medium: Liquids, Solids
              Radar Frequency: 76GHz~81GHz
              Beam Angle: 3°; 8°
              Dead Zone: 0.1m
              Power Supply: 12~24V DC; 220V AC (Optional)
              Measuring Range: 0~120m
              Measurement Accuacy: ±1mm or ±0.1%F.S.
              Output Signal: 2 wire 4-20mA+HART; 4 wire 4-20mA+HART+RS485
              Working Temperature: -40~130℃ (default); up to 1200℃ (customizable)
              Working Pressure: -0.1~1.6 MPa
              On-site Display: LCD
              Process Connection: 1-1/2" thread, 3-1/2" thread; >= DN50 flange
              Electrical Interface: M20*1.5
              Antenna Material: PTFE
              Housing Material: Aluminum Alloy; SS 304
              Response Time: 1 s
              Waterproof Grade: IP67
              Explosionproof Grade: Ex ia IIC T6

            • Highlight Points Before Order:

              Measuring Medium
              Measuring Range
              Output Signal
              Medium Temperature
              Process Connection
Additional Information
Antenna Size

1.5 inch, 3.5 inch
