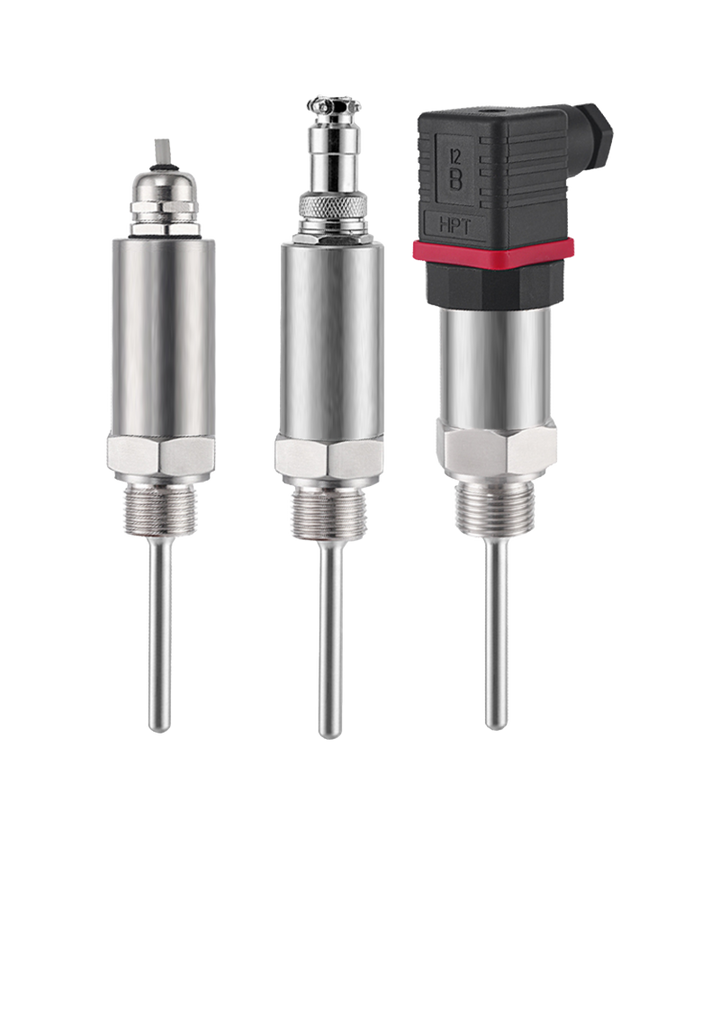

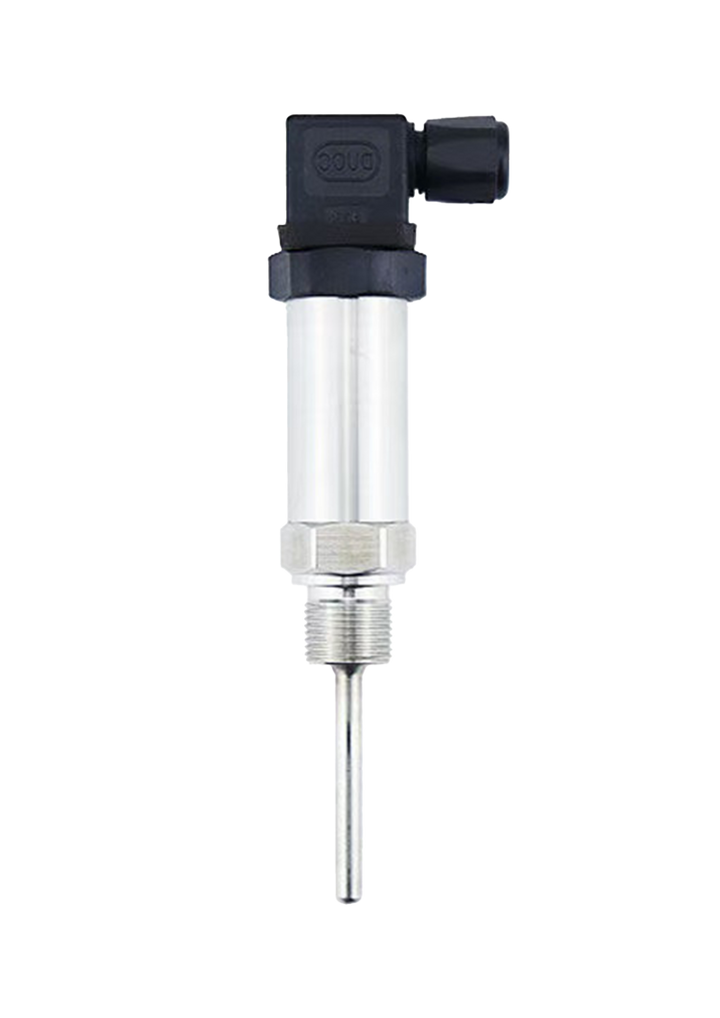

Compact Insertion Temperature Transmitter PT100 Temperature Sensor Contact Temperature Measurement Digital Thermometer

$11.60

Highest Temperature: <100℃

<100℃
<200℃

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Temperature Measurement
Tags: Contact Temperature Measurement PT100 Temperature Sensor Temperature Transmitter
Description

            • Essential Specifications:

              Power Supply: 12~36VDC
              Measuring Range: -50-200℃ (customizable from the wide range)
              Measuring Element: PT100
              Measuring Accuracy: ±0.5%F.S
              Long-term Stability: 0.2%F.S/ year
              Output Signal: 4-20mA; 0-5V; 0-10V; RS485
              Load Resistance: <=500Ω
              Ambient Temperature: -20~85℃
              Related Humidity: 10-95% (Noncondensing)
              Sensor Housing: SS304; SS316 (optional)
              Process Connection: thread; flange; tri-clamp (standards & sizes are customizable)
              Probe Diameter: 8mm; 10mm; 12mm; others
              Probe Length: 50mm; 100mm; 150mm; 200mm; 250mm; others
              Electrical Interface: direct outlet; DIN connector; circular connector

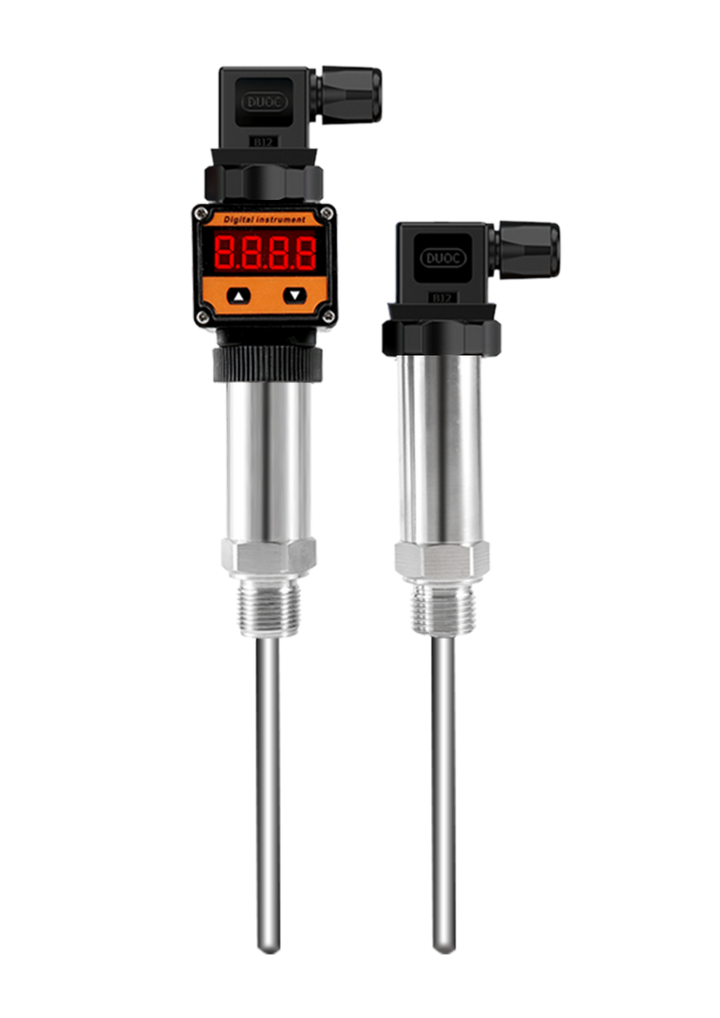

              Display: None; LED; LCD
              Waterproof Grade: IP54 to IP66 (depends on electrical interface)




            • Highlight Points Before Order:

              Measuring Medium
              Temperature Range
              Output Signal
              Process Connection
              Electrical Interface
              On-site Display
Additional Information
Highest Temperature

<100℃, <200℃
