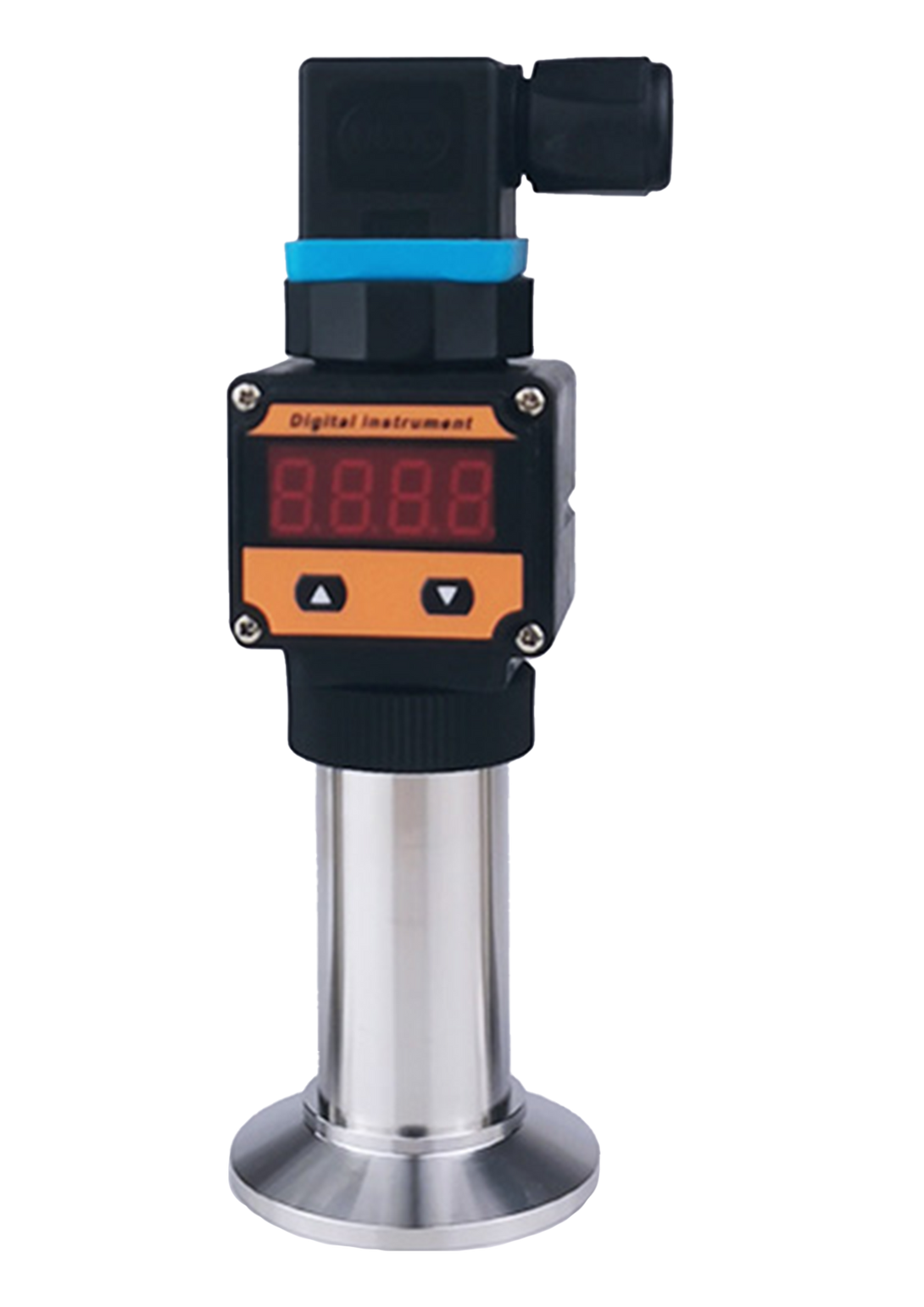

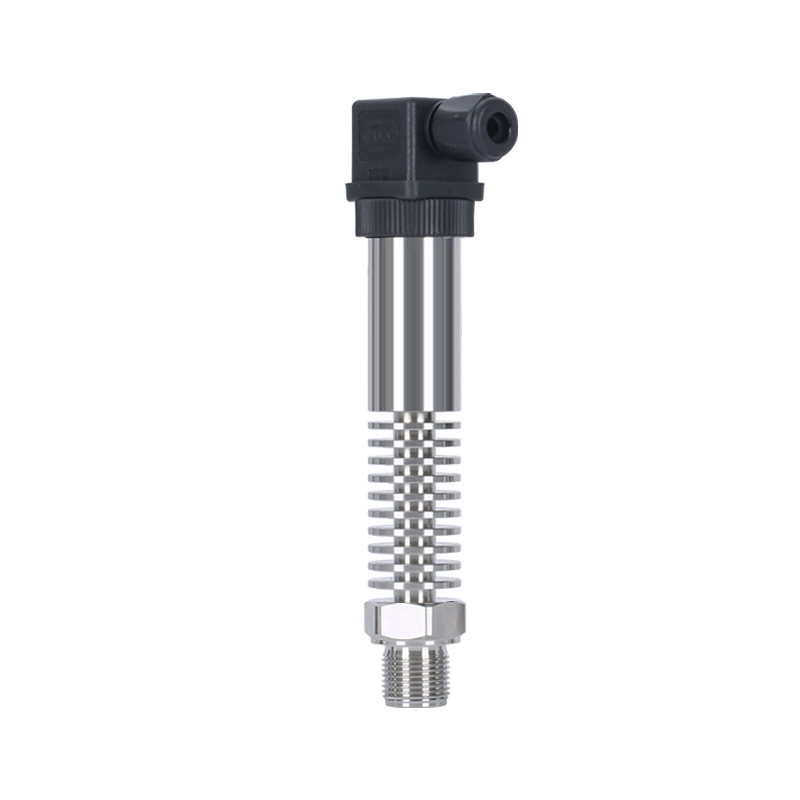

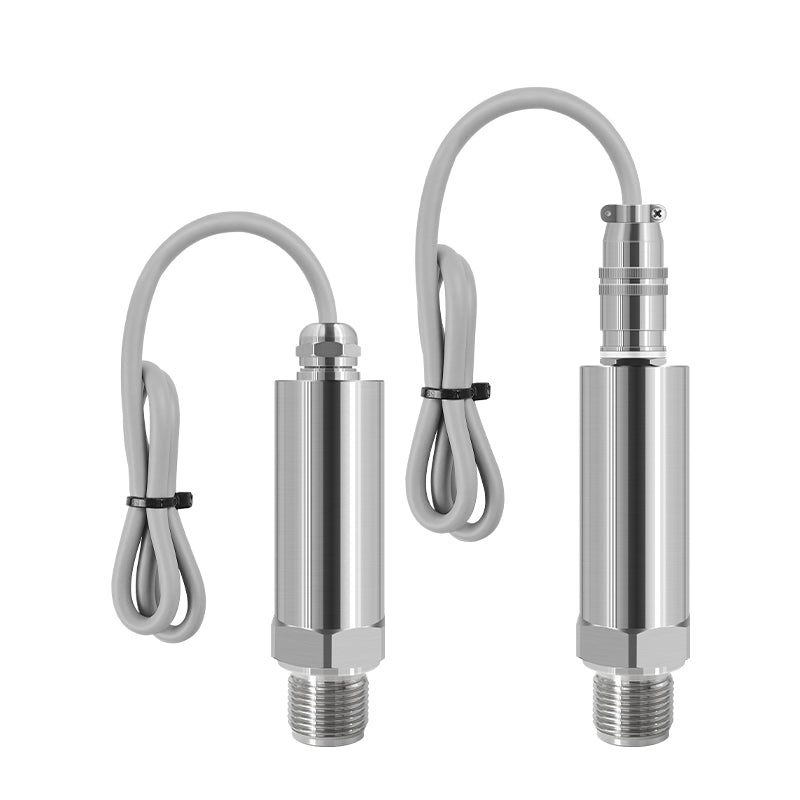

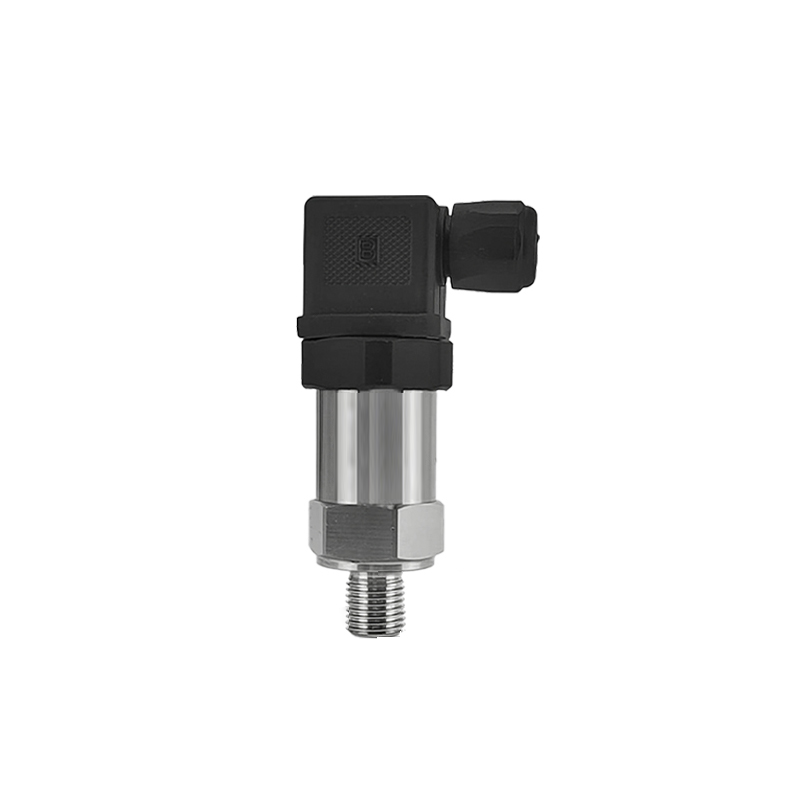

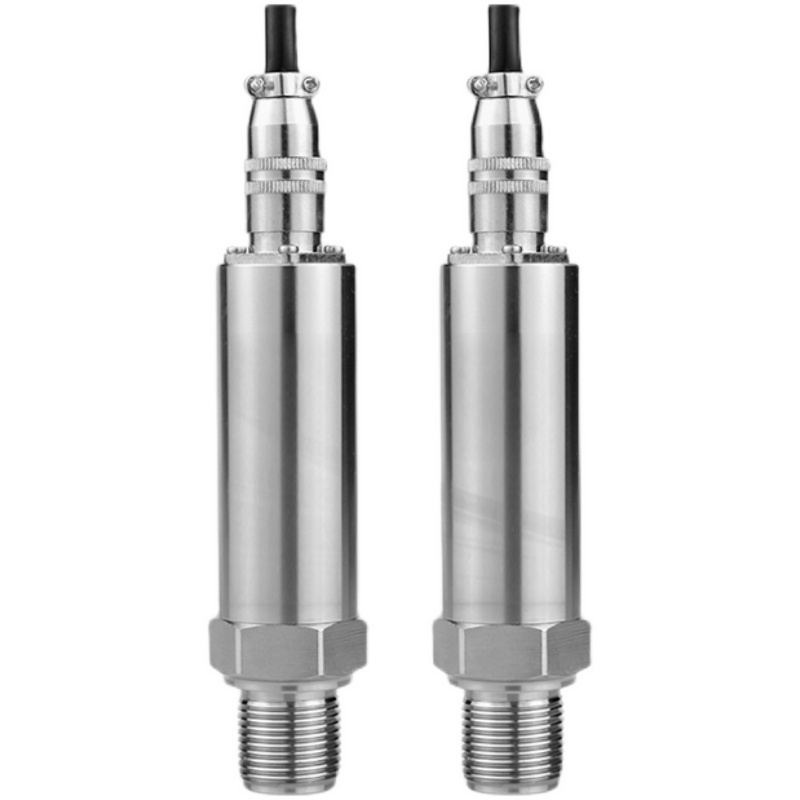

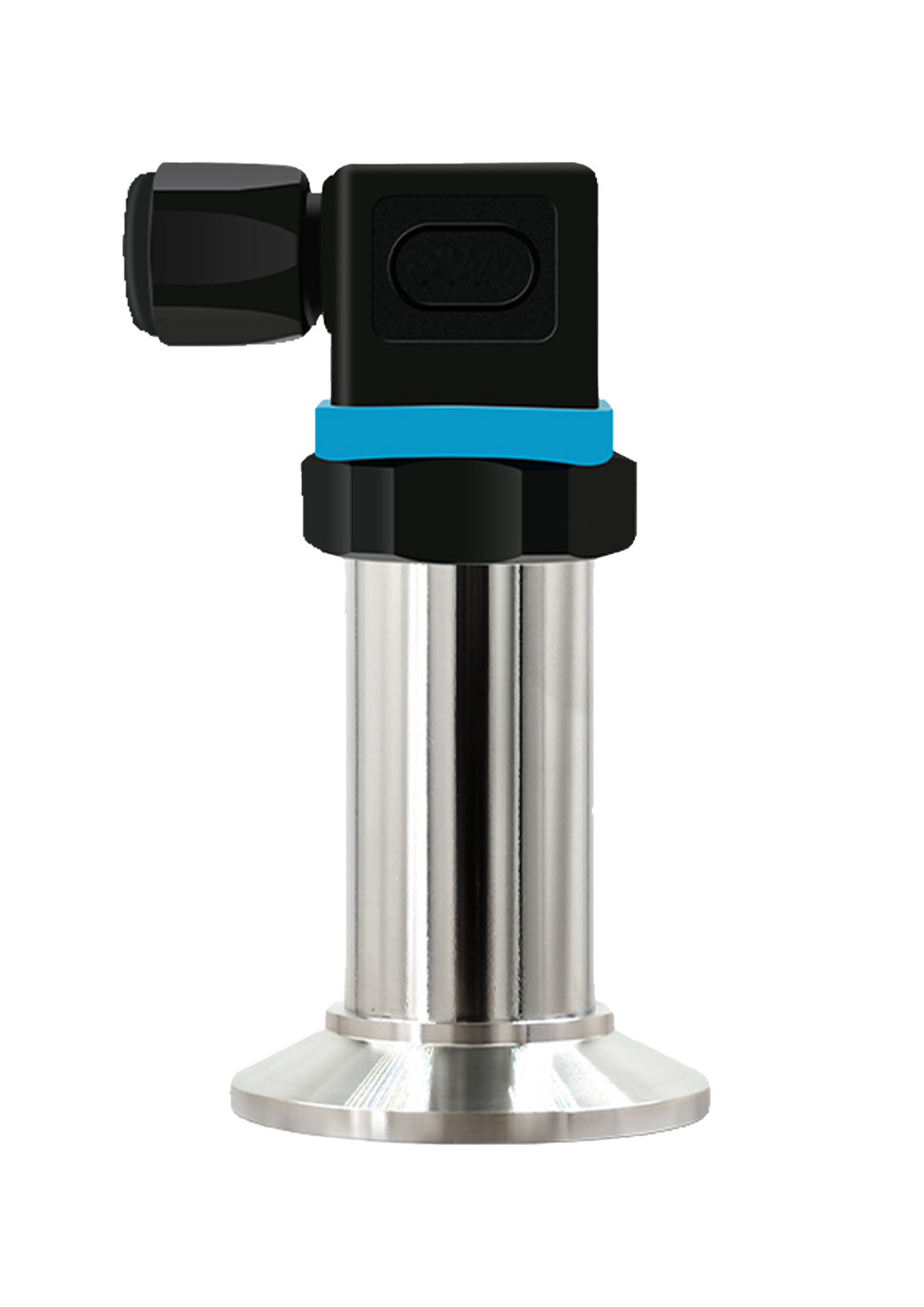

Compact Pressure Transmitter Pressure Sensor Pressure Transducer Oil Pressure Fuel Pressure Gas Pressure High Pressure Remote Data Transmission

$35.00 $22.50
People are viewing this right now

Accuracy: 0.5%F.S

0.5%F.S
0.25%F.S

Output: 4-20mA

4-20mA
0-10V
0-5V
RS485
Add to WishlistCompare
sold in last hours

amazon paymentsamerican expressapple paygoogle paymasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Pressure Measurement
Tags: Pressure sensor Pressure transducer Pressure transmitter
Description

              • Essential Specifications:

                Measuring Medium: Gas; Liquid
                Sensor Core: diffusion silicon
                Power Supply: 12~36V DC; 5V DC (Optional)
                Measuring Range: -0.1MPa~60MPa (Customizable)
                Measurement Accuacy:±0.5%F.S; ±0.25% (Optional)
                Output Signal: 4-20mA, 0-5V, 0-10V, RS485 (Selectable)
                Working Temperature: -20~70℃; 200℃ (Optional)
                Pressure Overload: 150%F.S
                Long-term Stability: ±0.1%F.S/ year
                On-site Display: None; LED; LCD
                Process Connection: M20*1.5, 1/2" NPT, G 1/2, Tri-clamp (Customizable)
                Electrical Interface: direct outlet; DIN connector; circular connector
                Waterproof Grade: IP54 to IP68 (depends on electrical interface)

            • Highlight Points Before Order:

              Measuring Medium
              Output Signal
              Accuracy Class
              Medium Temperature
              Process Connection
              Electrical Connection
              On-site Display
