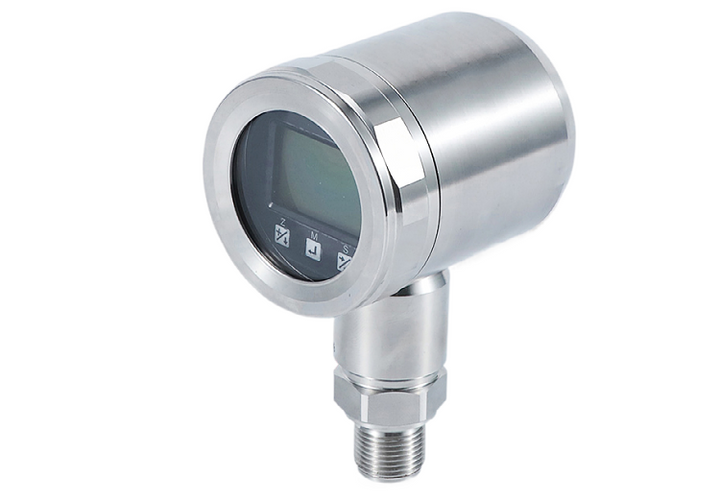

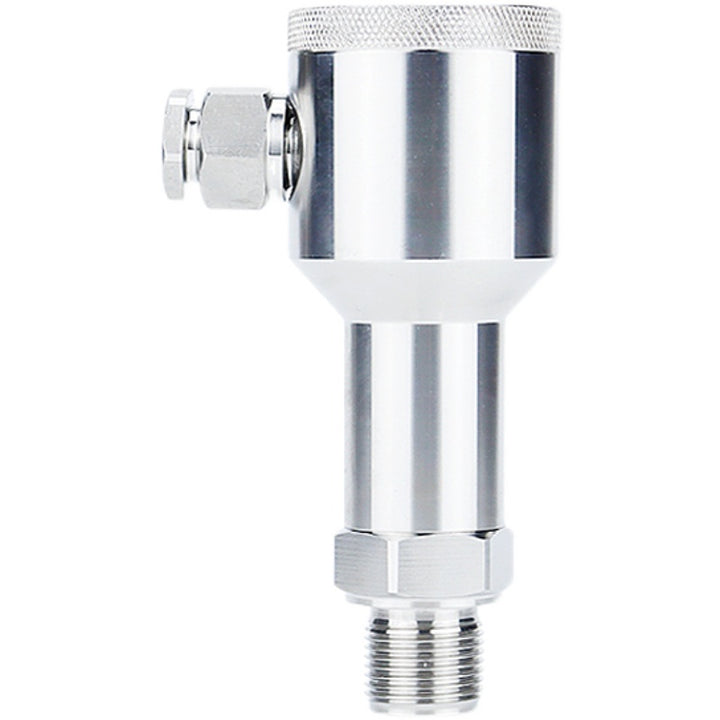

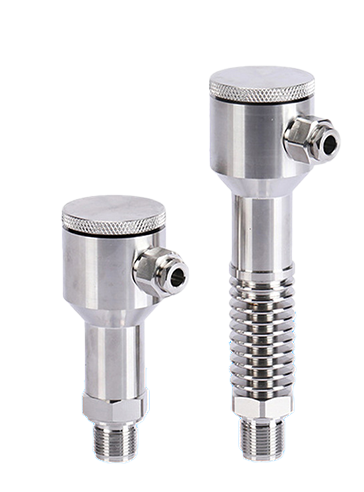

Complete Stainless Steel Pressure Sensor Explosion Proof Pressure Transmitter Compact Pressure Transducer Oil Gas Fuel Pressure Measurement Non-hazardous area

Essential Specifications:

Measuring Medium: Gas; Liquid
Sensor Core: diffusion silicon
Power Supply: 12~36V DC
Measuring Range: -0.1MPa~60MPa (Customizable)
Measurement Accuacy:±0.5%F.S; ±0.25% (Optional)
Output Signal: 4-20mA, 0-5V, 0-10V, RS485 (Selectable)
Working Temperature: -20~70℃; 200℃ (Optional)
Pressure Overload: 150%F.S
Long-term Stability: ±0.1%F.S/ year
On-site Display: None; LED; LCD
Process Connection: M20*1.5, 1/2" NPT, G 1/2, Tri-clamp (Customizable)
Electrical Interface: M20*1.5
Waterproof Grade: IP65
Explosionproof Grade: Ex db IIC T6

• Highlight Points Before Order:
  Measuring Medium
  Output Signal
  Accuracy Class
  Medium Temperature
  Process Connection
  On-site Display
