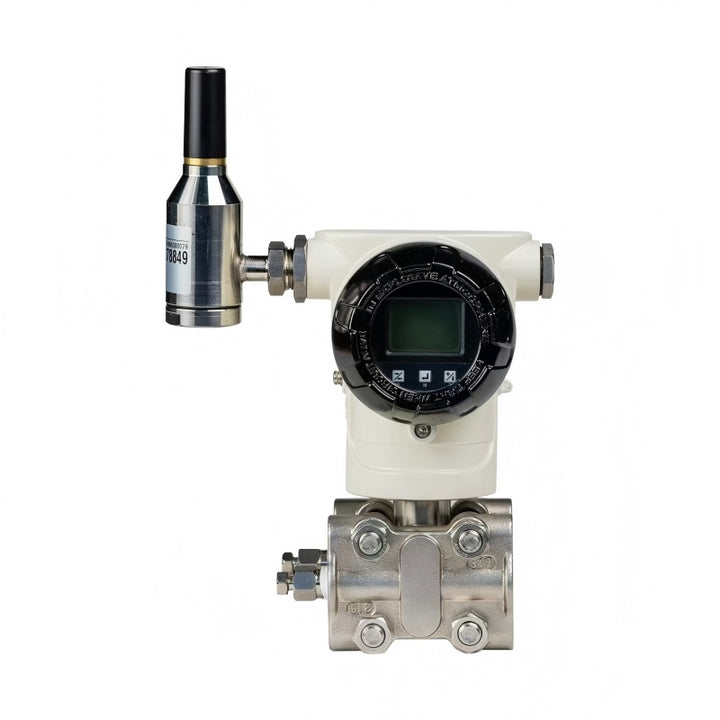

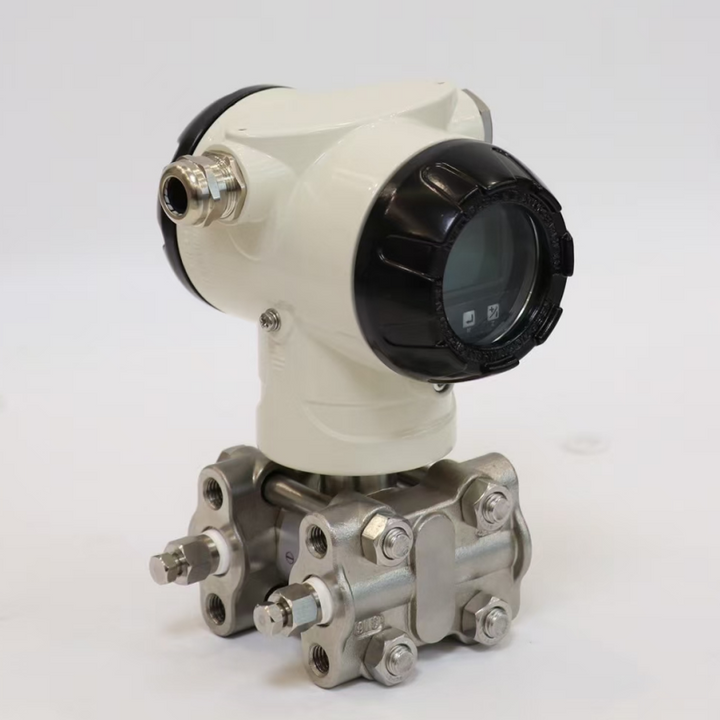

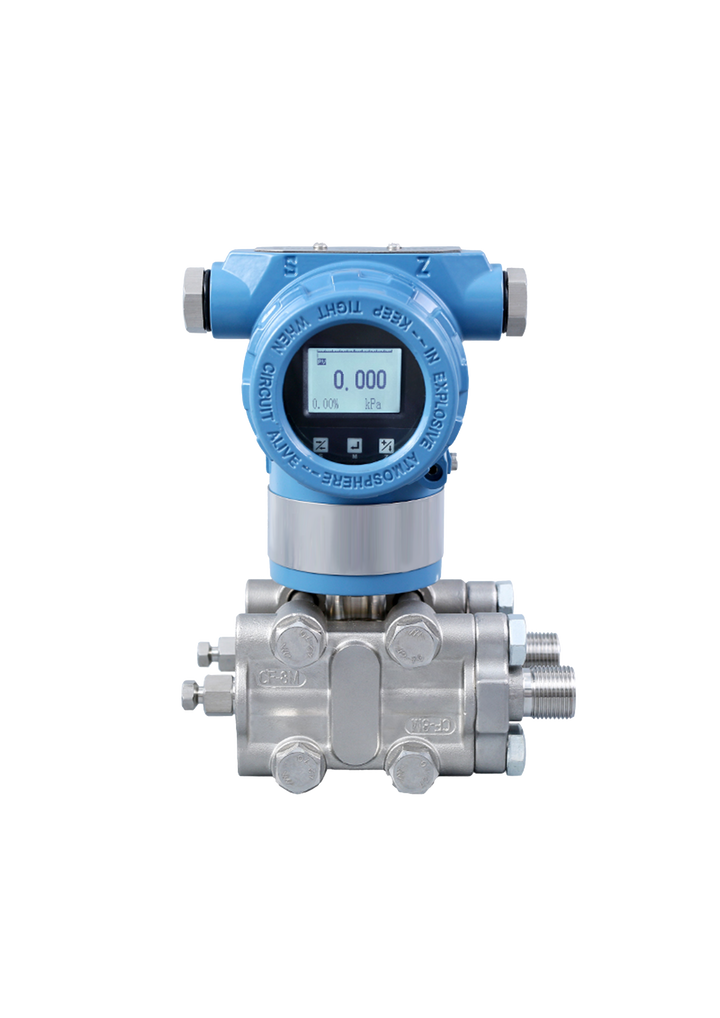

Differential Pressure Transmitter Explosion Proof Oil Gas Fuel Pressure Measurement Non-hazardous area
Description
-
-
-
-
-
-
Essential Specifications:
Measuring Medium: Gas; Liquid
Sensor Core: monocrystalline silicon (Default); capacitance type (Optional)
Power Supply: 12~45V DC
Measuring Range: -0.1KPa~2000KPa (Customizable)
Static Pressure: 32MPa
Measurement Accuacy:±0.075%F.S; ±0.1%; ±0.25%
Output Signal: 4-20mA &HART; RS485 (Optional)
Working Temperature: -20~150℃; higher (Customizable)
Pressure Overload: 200%F.S
Long-term Stability: ±0.075%F.S/ year
On-site Display: LCD

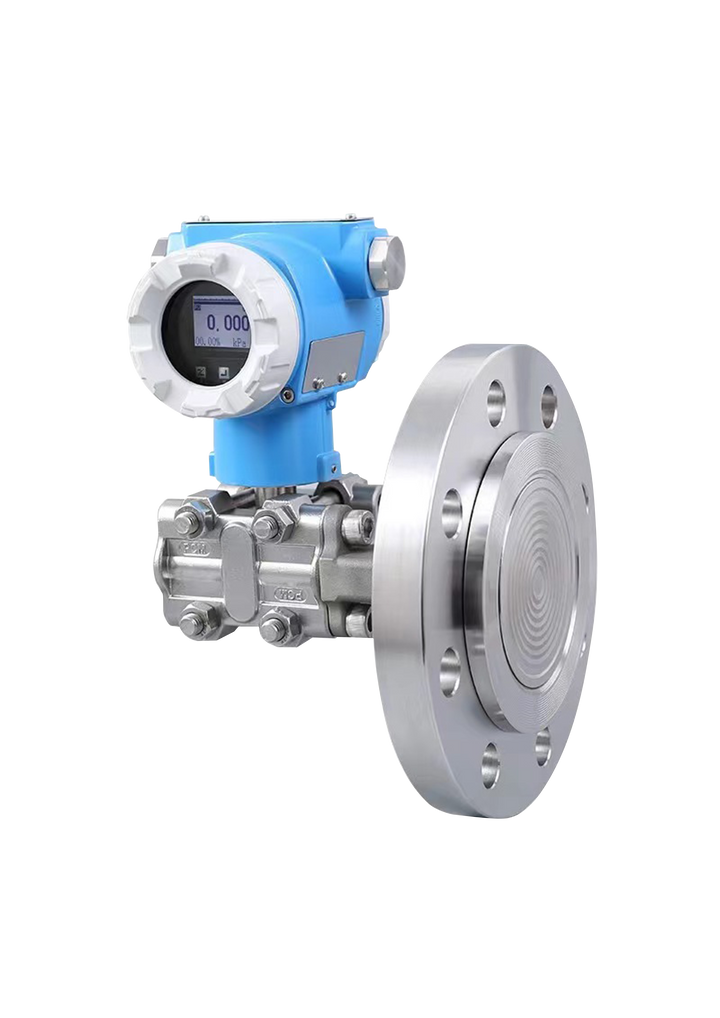

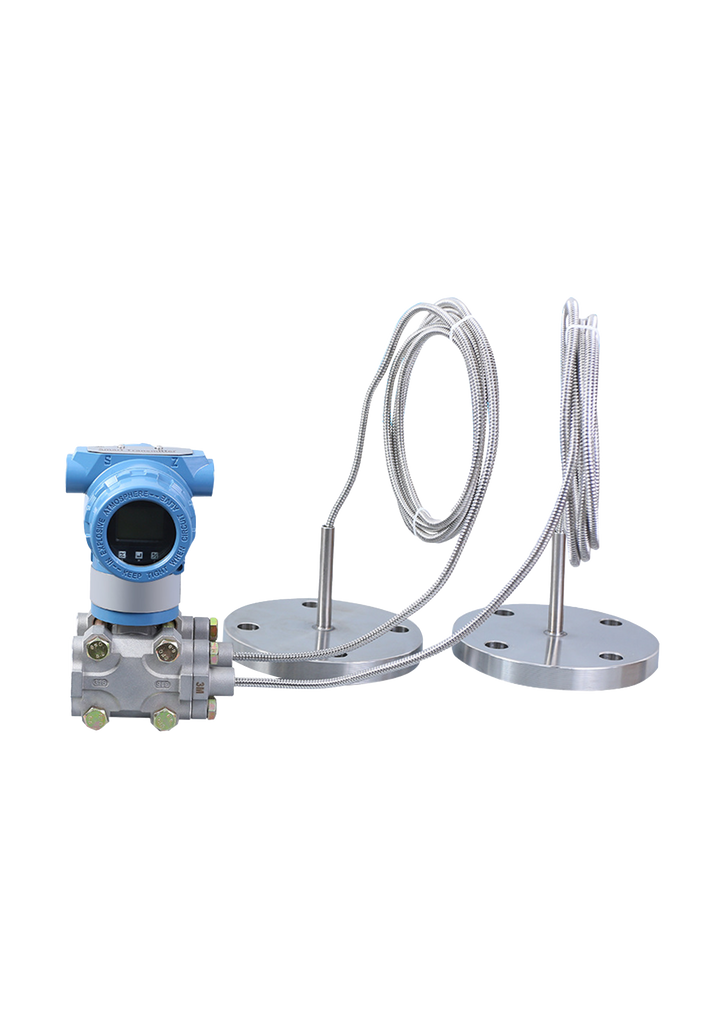

Process Connection: 1/4" NPT, 1/2" NPT, single flange; dual flange
Electrical Interface: M20*1.5
Waterproof Grade: IP65; IP67
Explosionproof Grade: Ex db IIC T6
-
Highlight Points Before Order:
Measuring Medium
Measuring Range
Output Signal
Accuracy Class
Medium Temperature
Process Connection
-
-
-
-
-
Additional Information
| Accuracy |
0.25%, 0.1%, 0.075% |
|---|
Differential Pressure Transmitter Explosion Proof Oil Gas Fuel Pressure Measurement Non-hazardous area
$175.00
