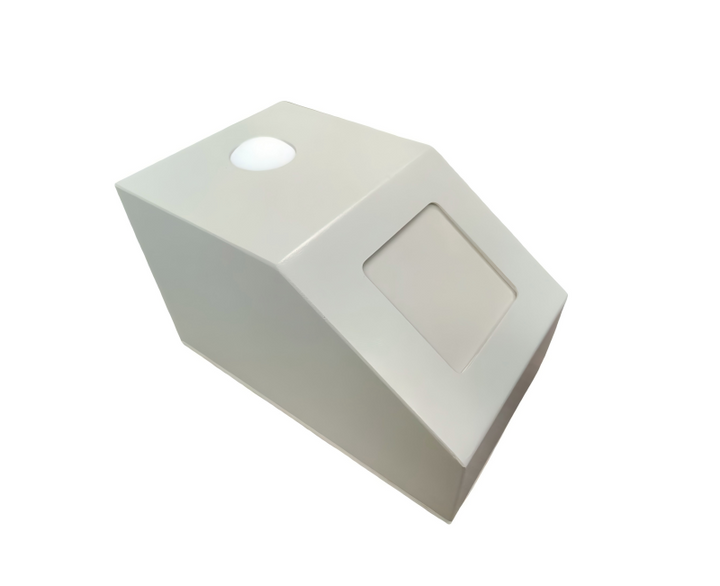

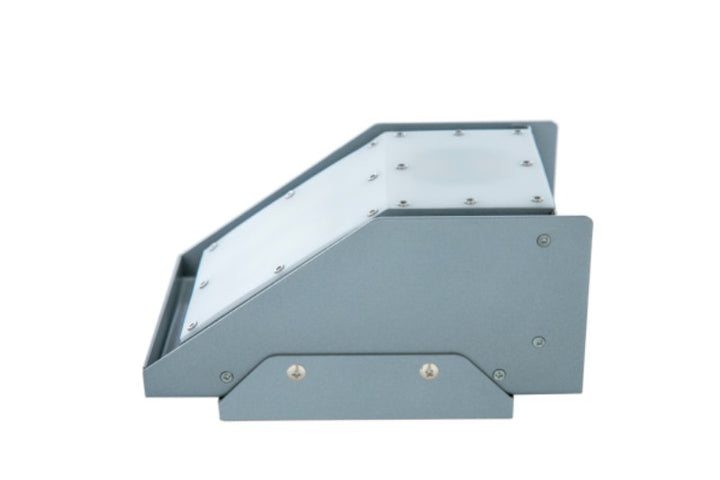

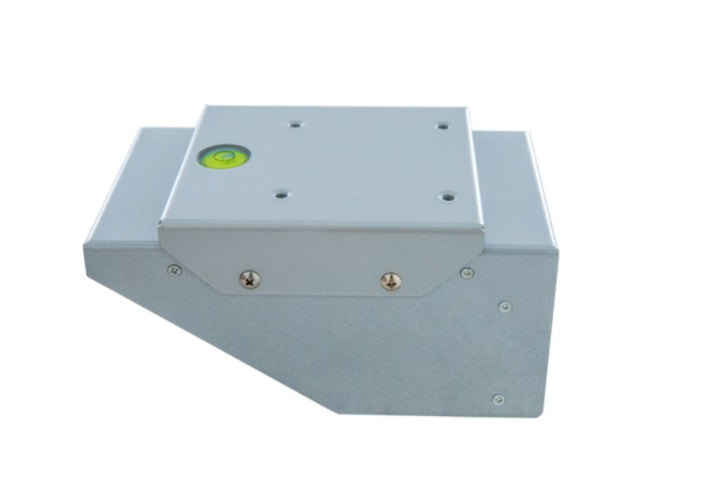

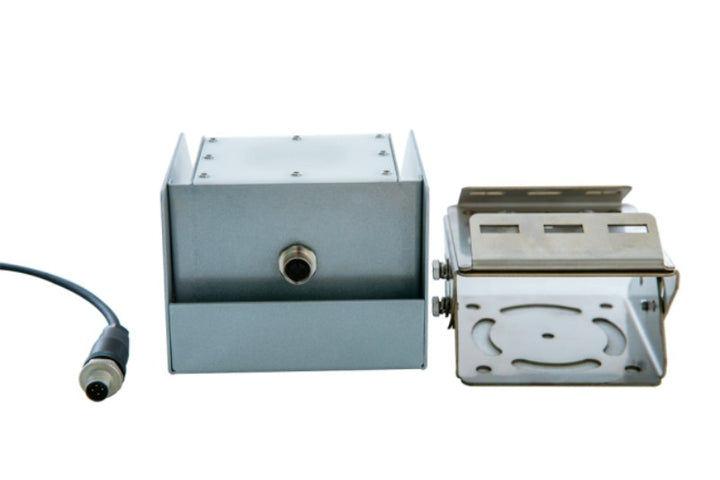

Doppler Radar Flow Meter Open Channel Flowmeter Top Mounted Doppler Principle Flow Rate Measurement Not Need Standard Flumes

$608.00

Display & Controller: None

None
Come with

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Flow Measurement Instruments 推荐产品
Tags: Flow Meter Flow Transmitter Flowmeter Liquid Flow Open Channel's Flow Sewage Flow Water Flow
Description

              • Essential Specifications:

                Power Supply: 10V~16VDC
                Radar Frequency: 24.0~24.25GHz
                Range of Velocity: 0.1~20m/s
                Range of Level: 0.1~40m
                Measurement Accuacy:Velocity, ±1%F.S or ±0.01m/s; Level, ±1%F.S
                Resolution: Velocity, 0.001m/s; Level, 1mm
                Antenna Beam Angle: For measuring water velocity, 14 × 32°; For water level, 14 × 10°
                Output Signal: RS485
                Working Temperature: -30~80℃
                Stabilization Time: ≤5s
                Update Cycle: 1s
                Sensor Housing: SS304 with electrostatic spraying
                Electrostatic Discharge Immunity: level 3
                Surge (shock) Immunity: level 4
                Cable Length: 20m (longer is optional)
                Installation: On the top of channels
                Features: Cross-section configurable; Attitude monitoring & correction; Flow direction configurable; Built-in horizontal calibrator
                Waterproof Grade: IP68








              • Highlight Points Before Order:

                Channel's Width
                Channel's Depth
                Power Supply
                Output Signal
Additional Information
Display & Controller

None, Come with
