Doppler Ultrasonic Flow Meter Open Channel Flowmeter Buttom Mounted Doppler Principle Flow Rate Measurement Not Need Standard Flumes

$468.00

Display & Controller: None

None
Come with

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Flow Measurement Instruments 推荐产品
Tags: Flow Meter Flow Transmitter Flowmeter Liquid Flow Open Channel's Flow Sewage Flow Water Flow
Description

            • Essential Specifications:

              Power Supply: 12V~24VDC
              Ultrasonic Frequency: 1000KHZ
              Range of Velocity: ±6.00m/s (bidirectional flow measurement)
              Range of Level: 0~10m
              Range of Temperature: -25℃～75℃
              Measurement Accuacy:Velocity, ±1%F.S or ±1mm/s; Level, ±0.1%F.S; Temperature, ±0.4℃
              Instantaneous Flow: 0.001～65.535 m³/s
              Cumulative Flow: 1-999999999 m³
              Output Signal: RS485; SDI-12, RS232, RS422
              Working Temperature: -20~60℃
              Measuring Data: Water level,water velocity, cross section area, flow rate
              Open Channels: Rectangular; Trapezoidal; Circular; Irregular
              Sensor Housing: POM
              Cable Length: 20m (longer is optional)

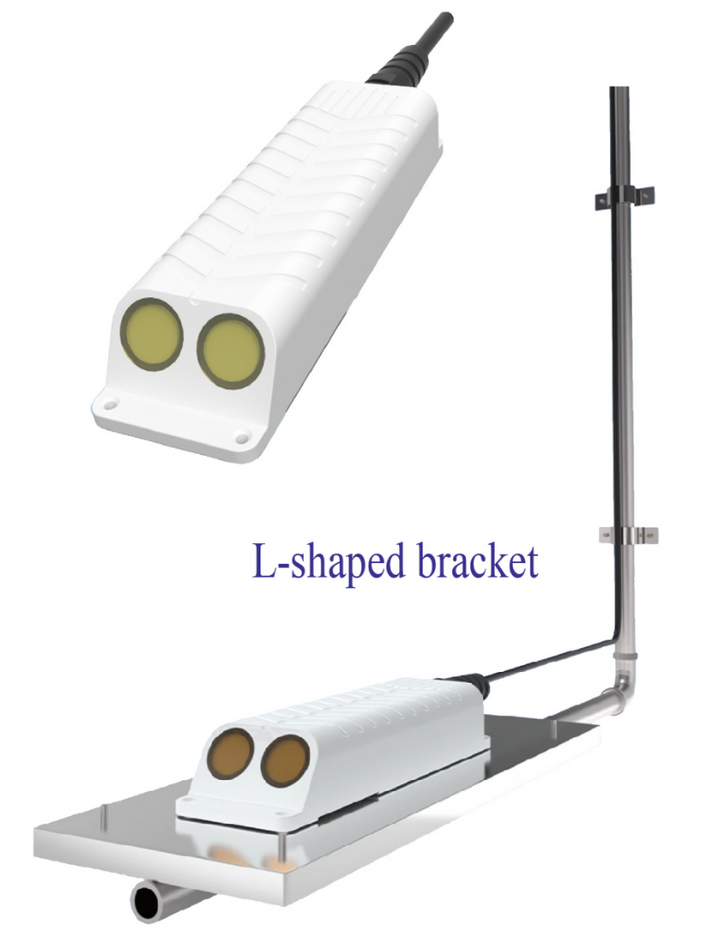

              Installation: At the bottom of channels
              Features: Anti-thunder; Anti-surge
              Waterproof Grade: IP68






            • Highlight Points Before Order:

              Channel's Width
              Channel's Depth
              Power Supply
              Output Signal
Additional Information

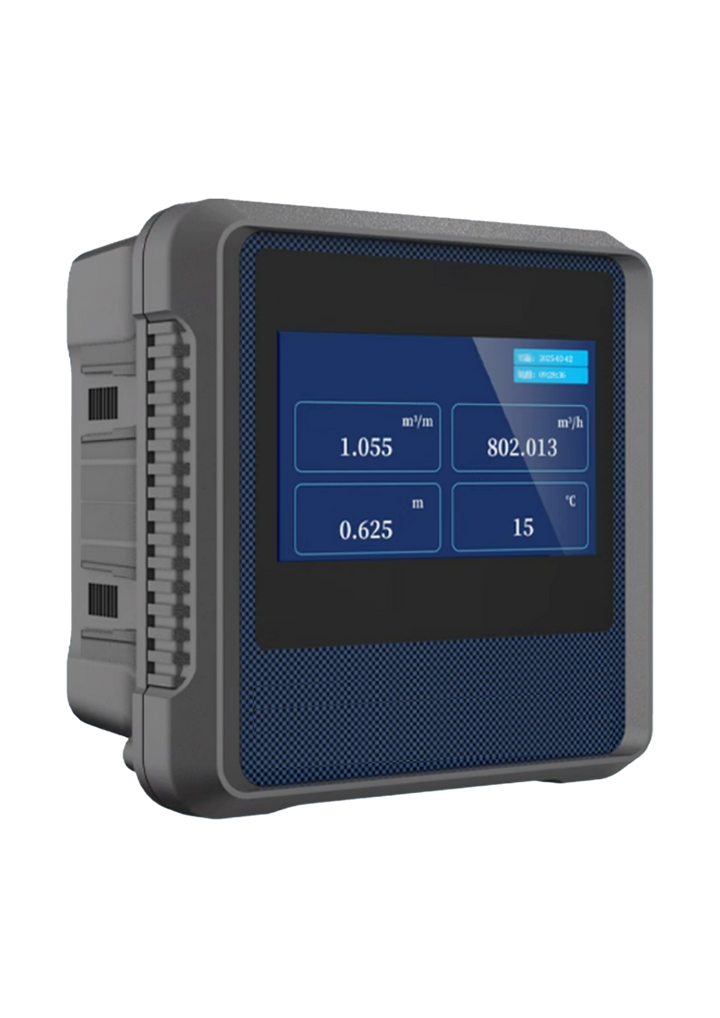

Display & Controller

None, Come with
