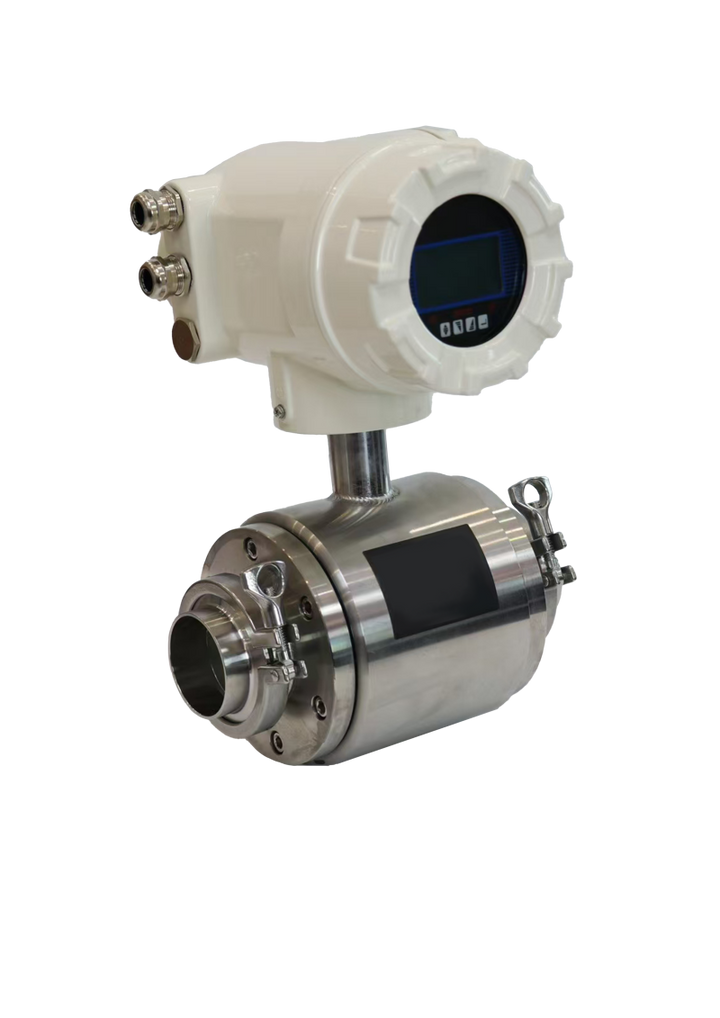

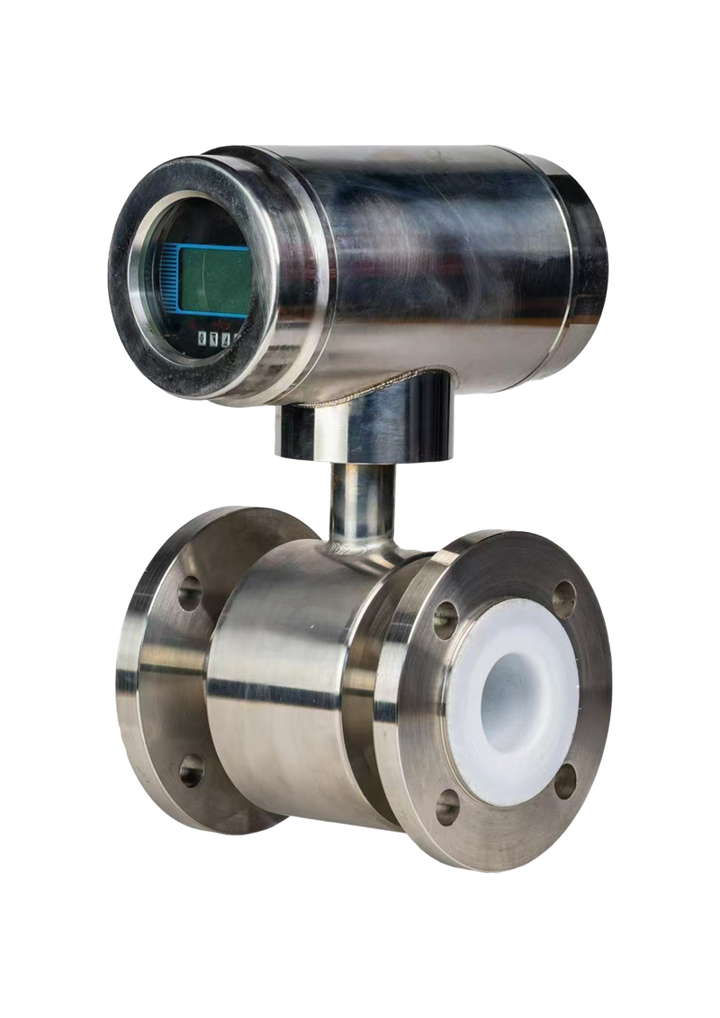

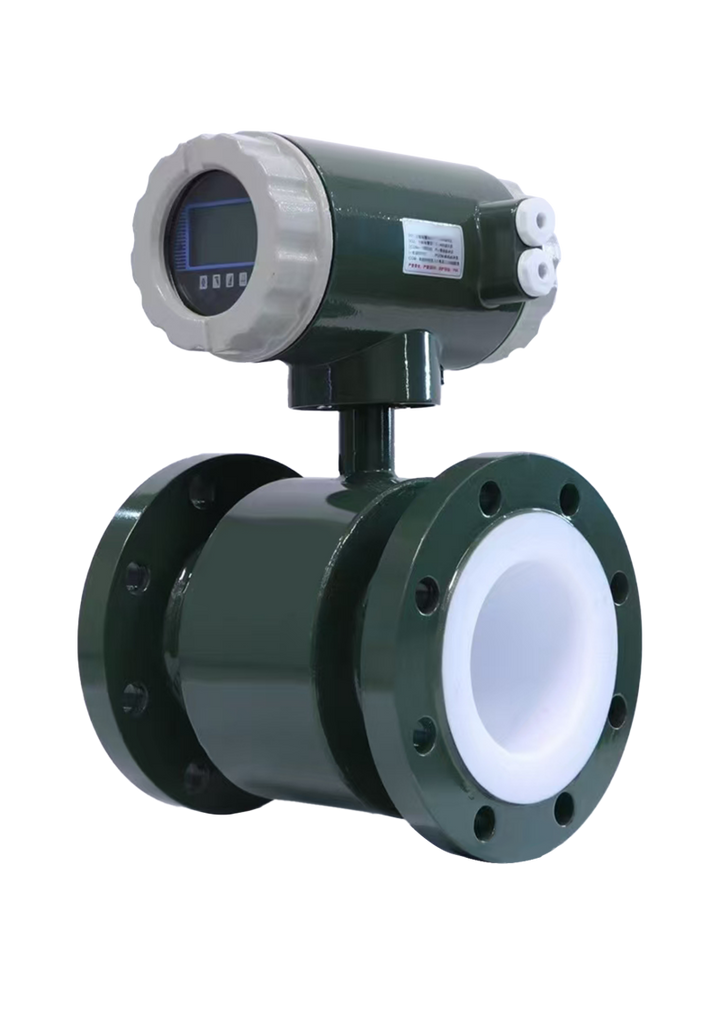

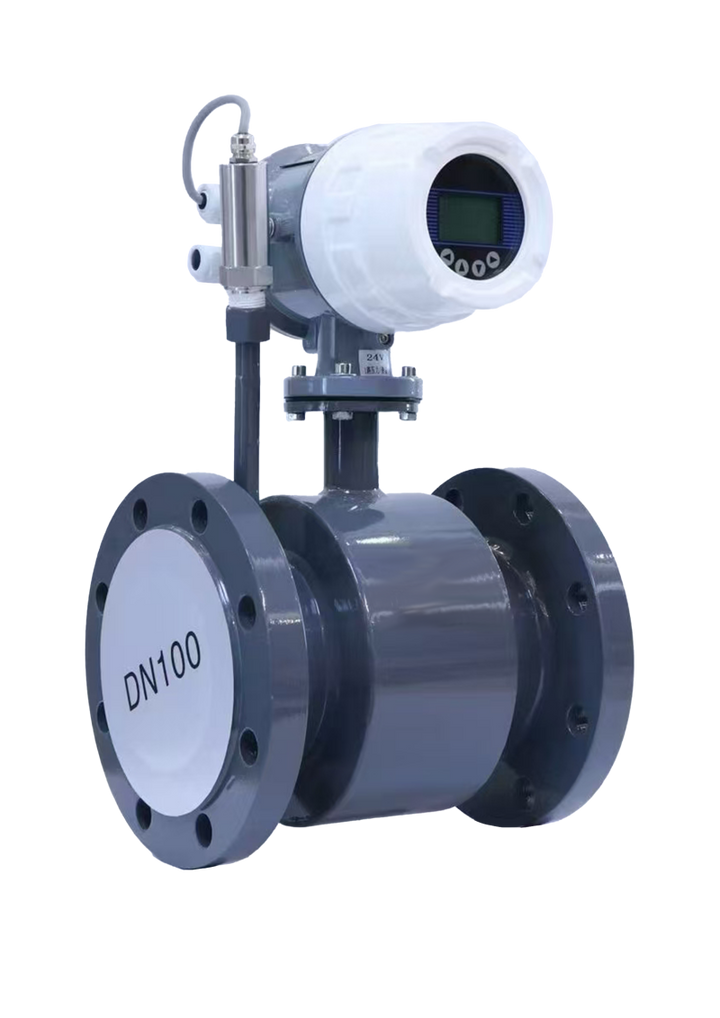

Electromagnetic Flow Meter Inline Flowmeter Wastewater Flow Slurry Flow Sewage Water Flow Measurement Big Large Diameter Pipeline
Description
-
-
-
-
-
-
Essential Specifications:
Measuring Medium: Most of liquids and slurries (no too many bubbles nor solid impurities)
Medium Conductivity: >= 40 of dielectric constant
Power Supply: 24V DC & 220V AC; 3.6V DC (optional)
Nominal Diameter: DN10~DN1600
Nominal Pressure: 0.6MPa~4.0MPa (higher pressure is customizable)
Measuring Range: range ratio<= 1500:1, fluid speed<= 15m/s
Measurement Accuacy:±0.5%F.S; ±0.3%F.S; ±0.2%F.S
Output Signal: 4-20mA; Pulse; Relay; HART; RS485 (free combination)
Working Temperature: -20~70℃ (PU rubber lining); -20~120℃ (PTFE lining)
Lining Material: Polyurethane, Neoprene; PTFE; Fluosilicic
Electrode Material: SS316L; Hastelloy C;Hastelloy B; Tantalum; Titanium; Platinum; others
Features: bidirectional measurement; instantaneous flow; positive & negative cumulative flow; automatic diagnosis (Excitation open-circuit alarm; blank pipe alarm; over-limited flow alarm)

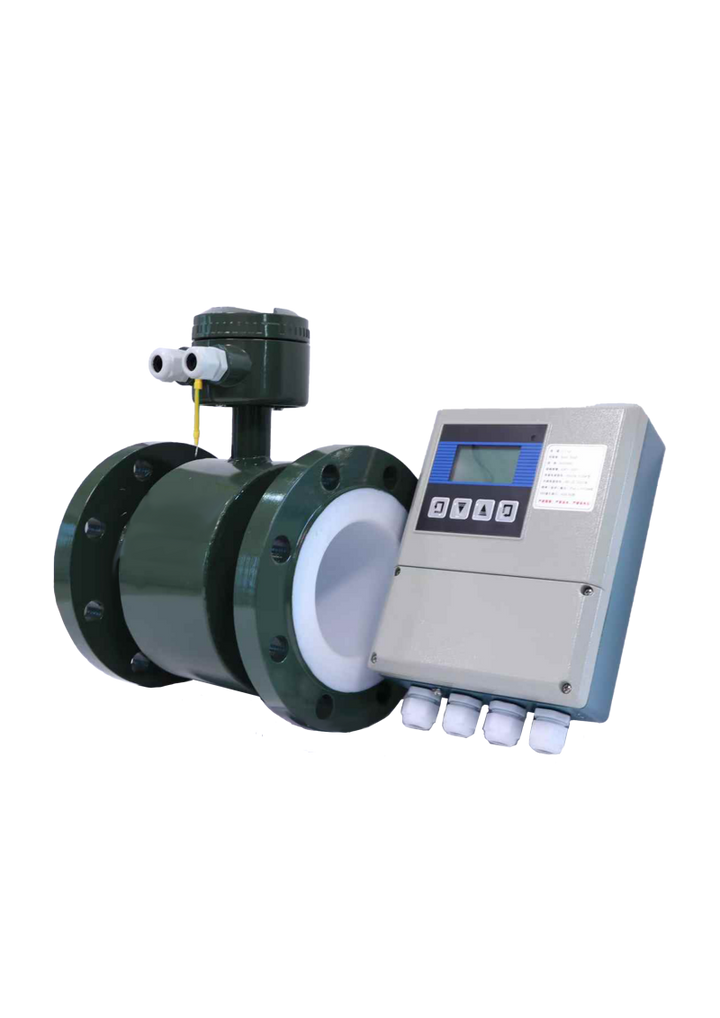

On-site Display: integrated LCD; separated convertor with LCD display
Process Connection: FF Flange, wafer clamp flange; Tri-clamp
Electrical Interface: M20*1.5
Power-off Protection: built-in non-power-down clock with 16 power-down records stored for 10 years
Waterproof Grade: IP65; IP67; IP68 (selectable)
Explosionproof Grade: Ex ia IIC T6
-
Highlight Points Before Order:
Measuring Medium
Pipe Diameter
Flow Range
Lining Meterial
Electrode Material
Output Signal
Process Connection
Accuracy Class
-
-
-
-
-
Additional Information
| Accuracy |
0.5%F.S, 0.2% |
|---|
Electromagnetic Flow Meter Inline Flowmeter Wastewater Flow Slurry Flow Sewage Water Flow Measurement Big Large Diameter Pipeline
$192.00
