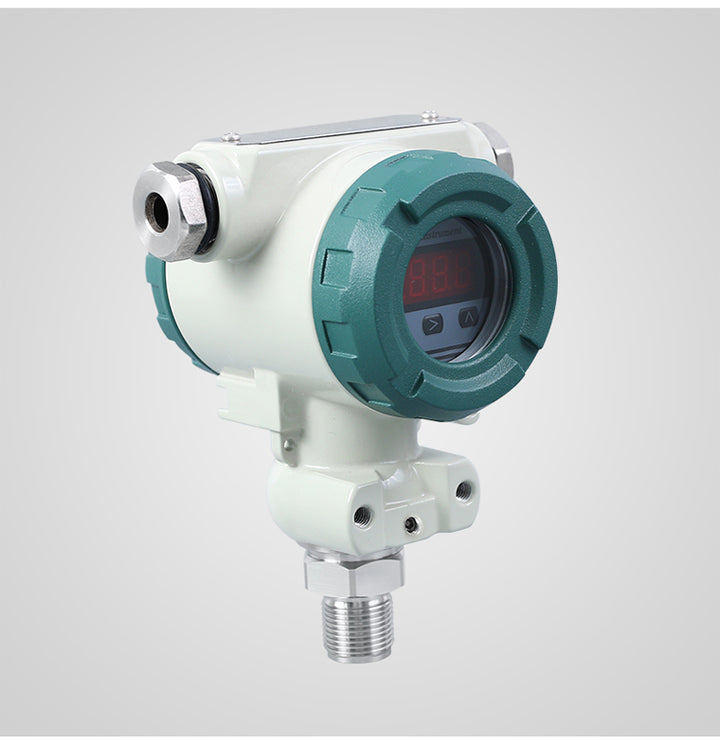

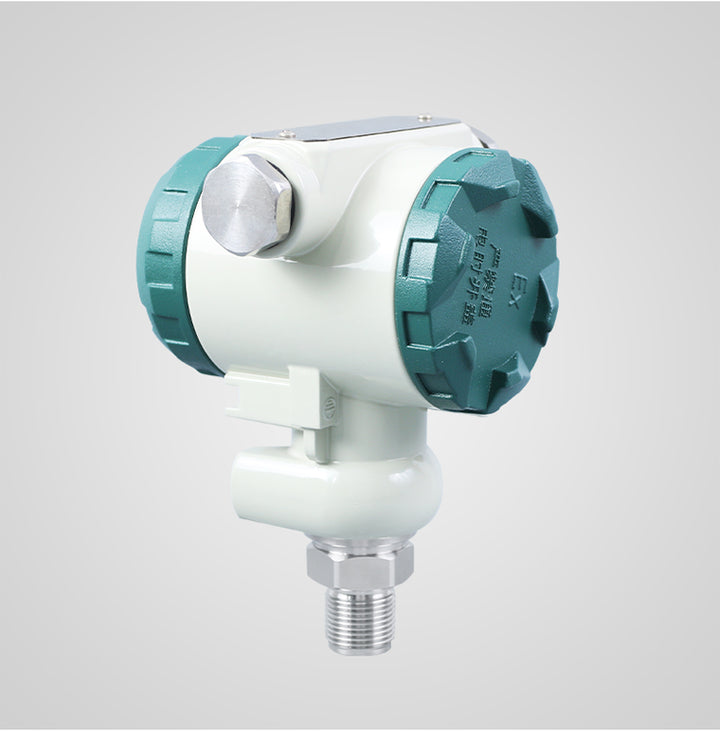

Explosion Proof Pressure Transmitter Pressure Switch Oil Gas Fuel Pressure Measurement Non-hazardous area

$80.00

Power Supply: 24V DC

24V DC
220V AC

Output Signal: 4-20mA+ 2 relay

4-20mA+ 2 relay
RS485+ 2 relay

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Pressure Measurement
Tags: Pressure Switch Pressure transmitter
Description

          • Essential Specifications:

            Measuring Medium: Gas; Liquid
            Sensor Core: diffusion silicon
            Power Supply: 12~36V DC; 220V AC
            Measuring Range: -0.1MPa~60MPa (Customizable)
            Measurement Accuacy:±0.5%F.S; ±0.3% (Optional)
            Output Signal: 4-20mA + 2 Relay; RS485 (Optional)
            Working Temperature: -20~70℃; 200℃ (Optional)
            Pressure Overload: 150%F.S
            Long-term Stability: ±0.1%F.S/ year
            On-site Display: LED
            Process Connection: M20*1.5, 1/2" NPT, G 1/2,
                          Tri-clamp, single flange (Customizable)
            Electrical Interface: M20*1.5
            Waterproof Grade: IP66
            Explosionproof Grade: Ex db IIC T6




          • Highlight Points Before Order:
            Power Supply
            Measuring Medium
            Output Signal
            Accuracy Class
            Medium Temperature
            Process Connection

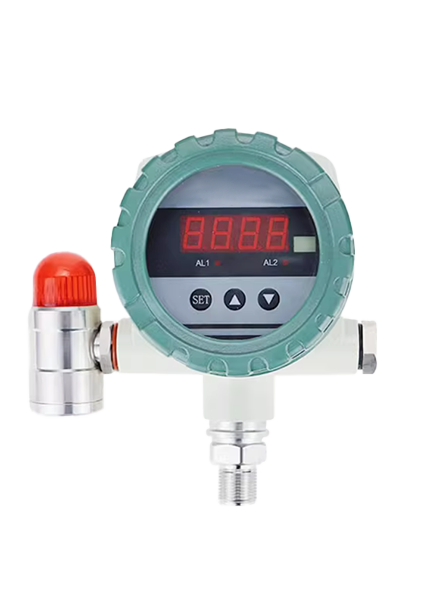

            Sound & light alarm lamp
Additional Information
Power Supply

24V DC, 220V AC
Output Signal

4-20mA+ 2 relay, RS485+ 2 relay
