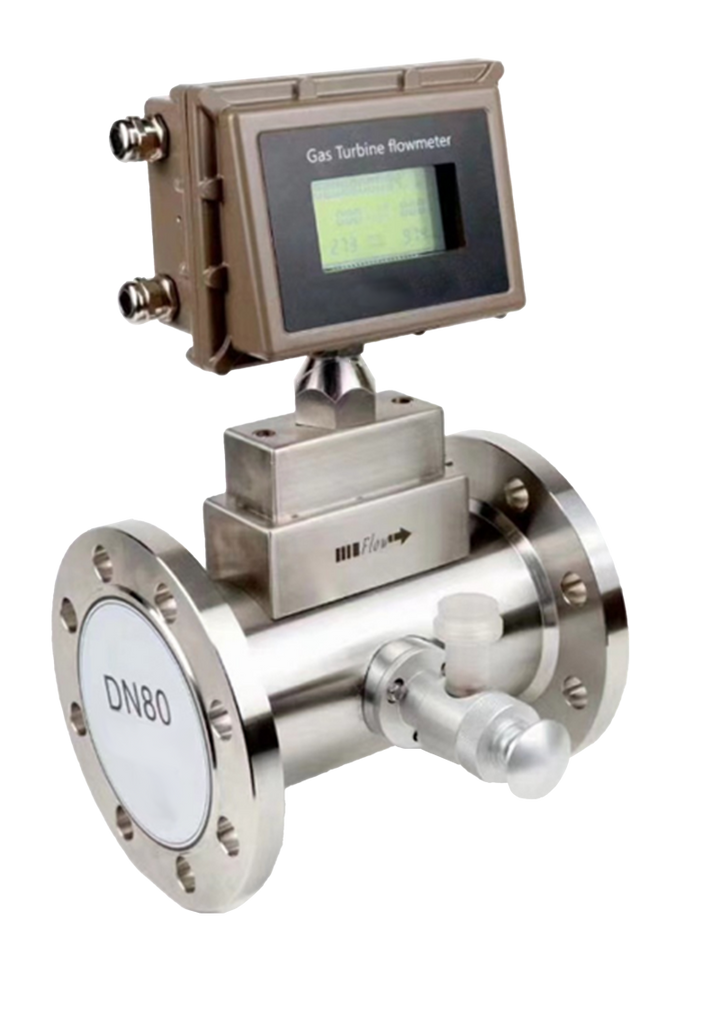

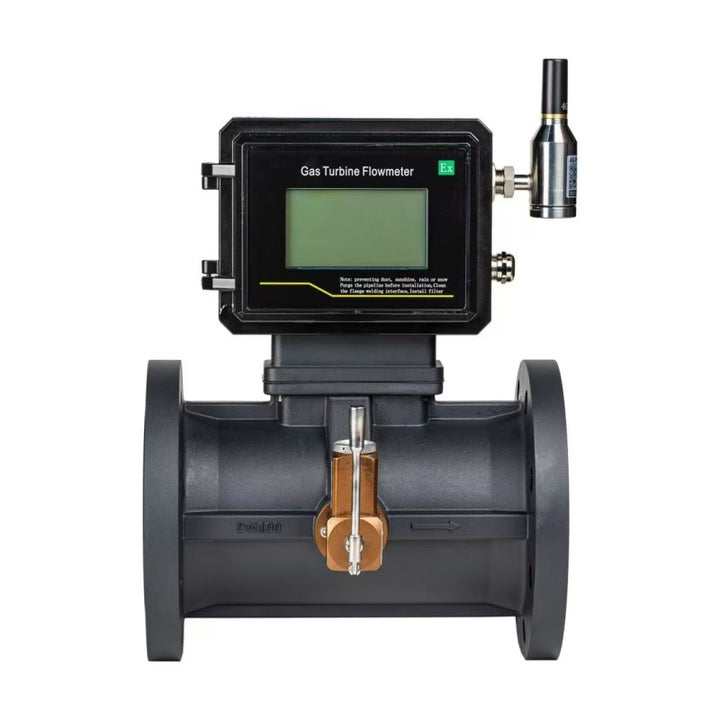

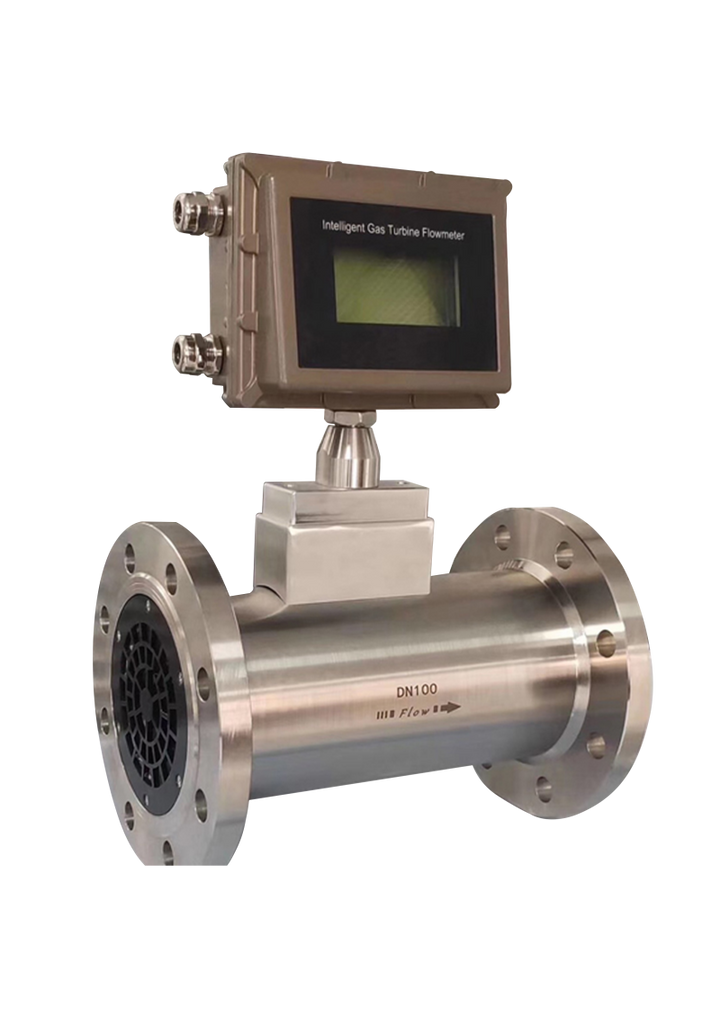

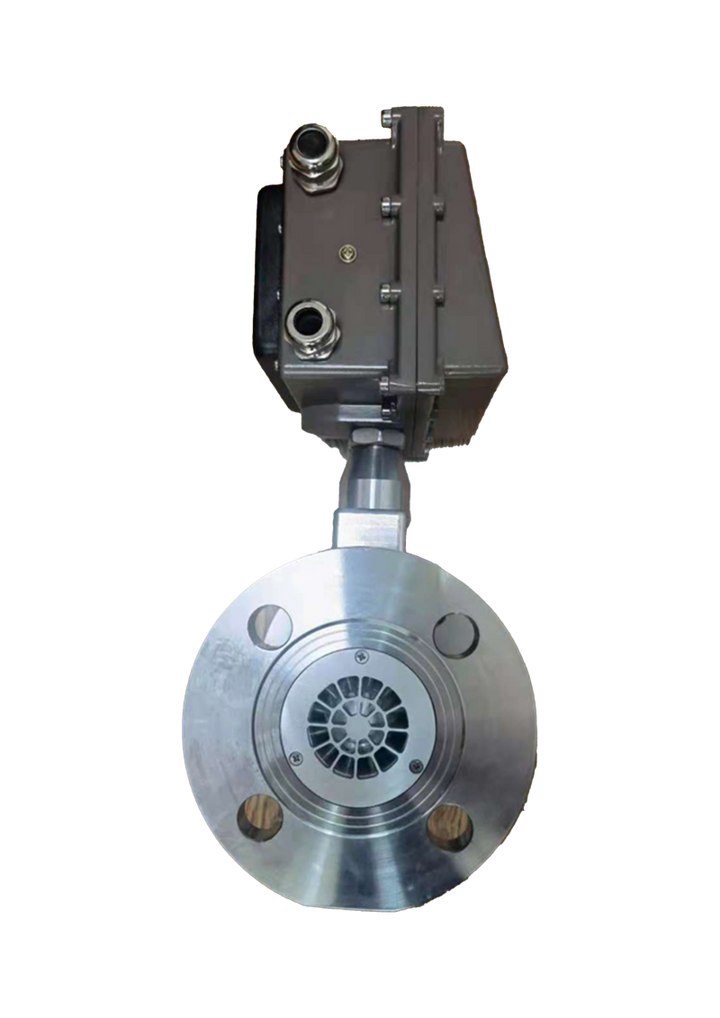

Gas Turbine Flow Meter High Precision Air Gas Flowmeter Low Pressure Loss Gas Flow Measurement

$658.00

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Flow Measurement Instruments
Tags: Air Flow Flow Meter Flow Transmitter Flowmeter Gas Flow
Description

            • Essential Specifications:

              Measuring Medium: Most of non-corrosive gas or air
              Power Supply: 24V DC; 3.6V DC battery (optional)
              Nominal Diameter: DN25~DN300
              Nominal Pressure: 1.6MPa~4.0MPa (higher pressure is customizable)
              Range Ratio: 1: 10
              Measurement Accuacy:±1.5%F.S; ±1%F.S
              Output Signal: Pulse; 4-20mA; RS485
              Working Temperature: medium, -20~80℃; convertor, -30~50℃
              Wetted Material: SS304; SS316
              On-site Display: integrated LCD
              Process Connection: Flange
              Electrical Interface: M20*1.5
              Waterproof Grade: IP55; IP65
              Explosionproof Grade: Ex db IIB T4




            • Highlight Points Before Order:

              Measuring Medium
              Pipe Diameter
              Flow Range
              Output Signal
              Process Connection
              Operating Pressure
              Operating Temperature
