Guide Wave Radar Level Transmitter Contact Radar Level Meter Corrosive Liquids Level Measurement Non-viscous Liquid Level

$405.00

Probe Type: Single Rod

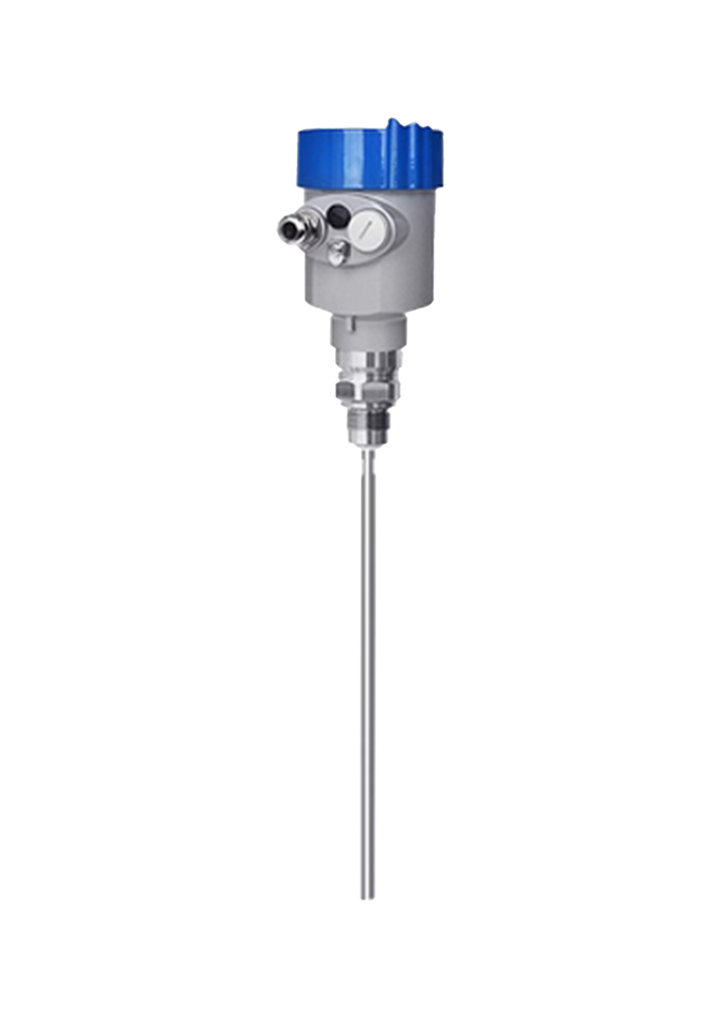

Single Rod

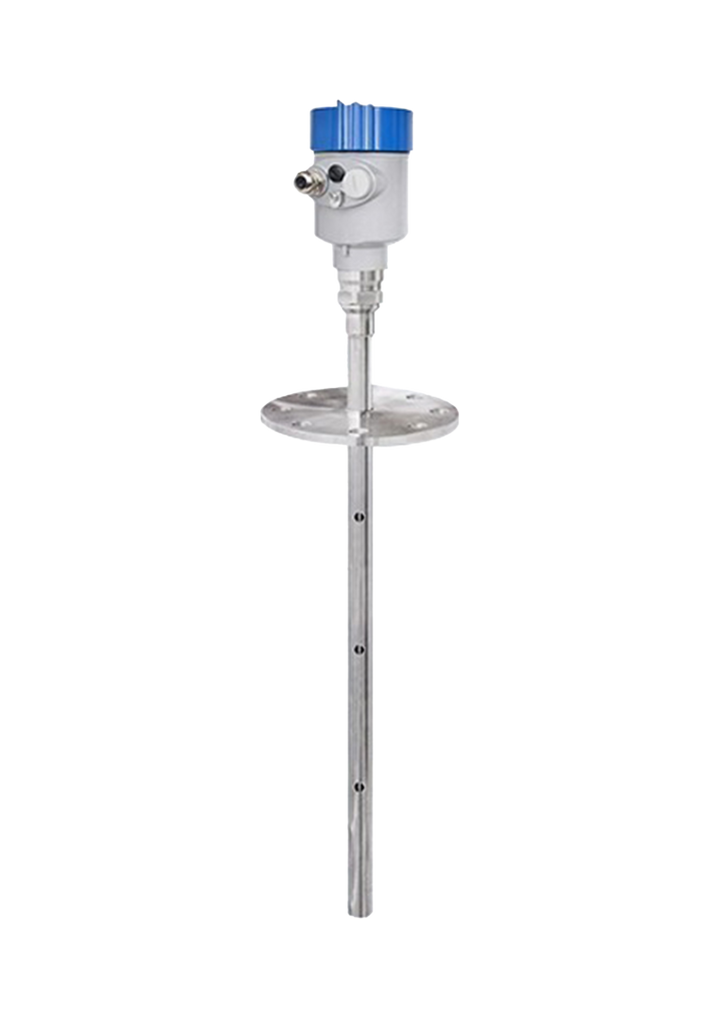

Coaxial Rod

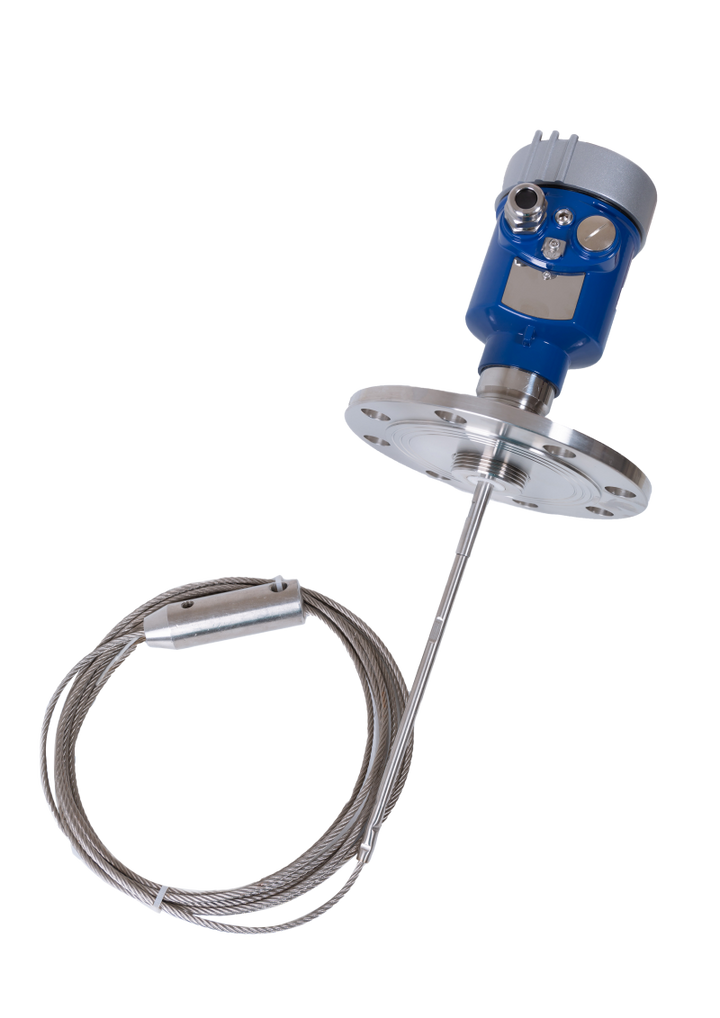

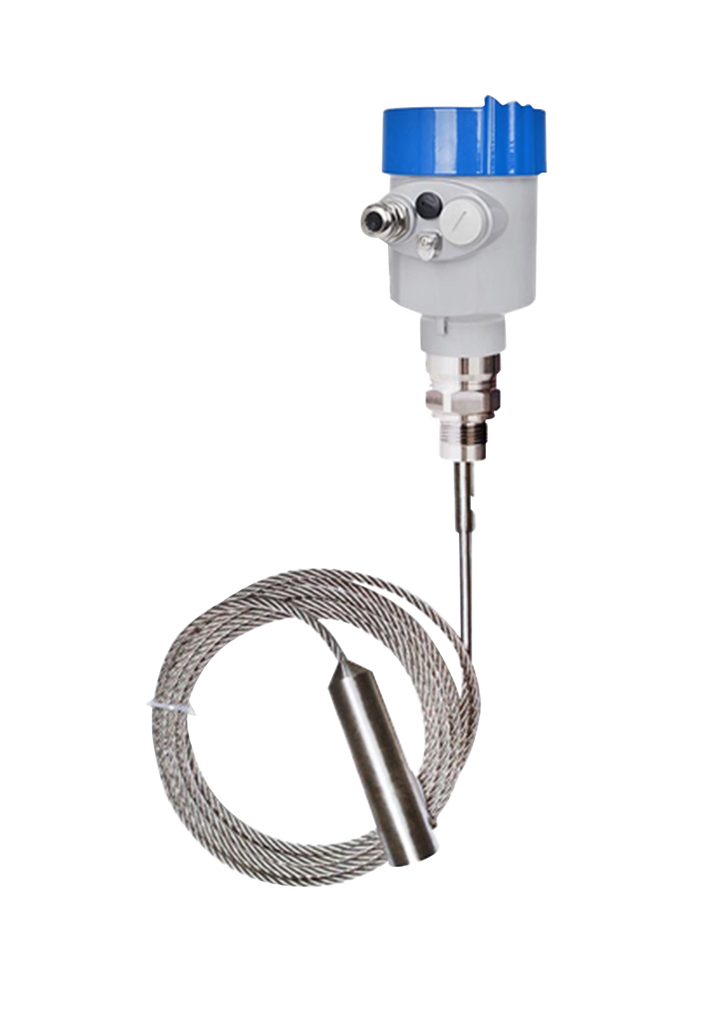

Rope Type

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Level Measurement
Tags: Corrosive Liquids Level Level Meter Level Transmitter Radar Level Water Level
Description

            • Essential Specifications:

              Measuring Medium: Liquids; Solids
              Radar Frequency: 1.8~26GHz
              Dead Zone: 20~25cm
              Power Supply: 12~24V DC; 220V AC (Optional)
              Measuring Range: 0~6m, rod probe; 0~30m, rope probe
              Measurement Accuacy: ±5mm; ±10mm
              Output Signal: 2 wire 4-20mA+HART; 4 wire 4-20mA+HART+RS485
              Working Temperature: -40~260℃; up to 400℃
              Working Pressure: -0.1~4.0 MPa
              On-site Display: LCD
              Process Connection: 1-1/2" thread, 3-1/2" thread; >= DN50 flange
              Electrical Interface: M20*1.5
              Probe Types: Single Rod; Coaxial Rod; Rope Type; Solids Measurement Exclusive
              Probe Material: SS304, SS316
              Housing Material: Aluminum Alloy; SS 304
              Response Time: 1 s
              Waterproof Grade: IP67
              Explosionproof Grade: Ex ia IIC T6




            • Highlight Points Before Order:

              Measuring Medium
              Measuring Range
              Output Signal
              Medium Temperature
              Process Connection
Additional Information
Probe Type

Single Rod, Coaxial Rod, Rope Type
