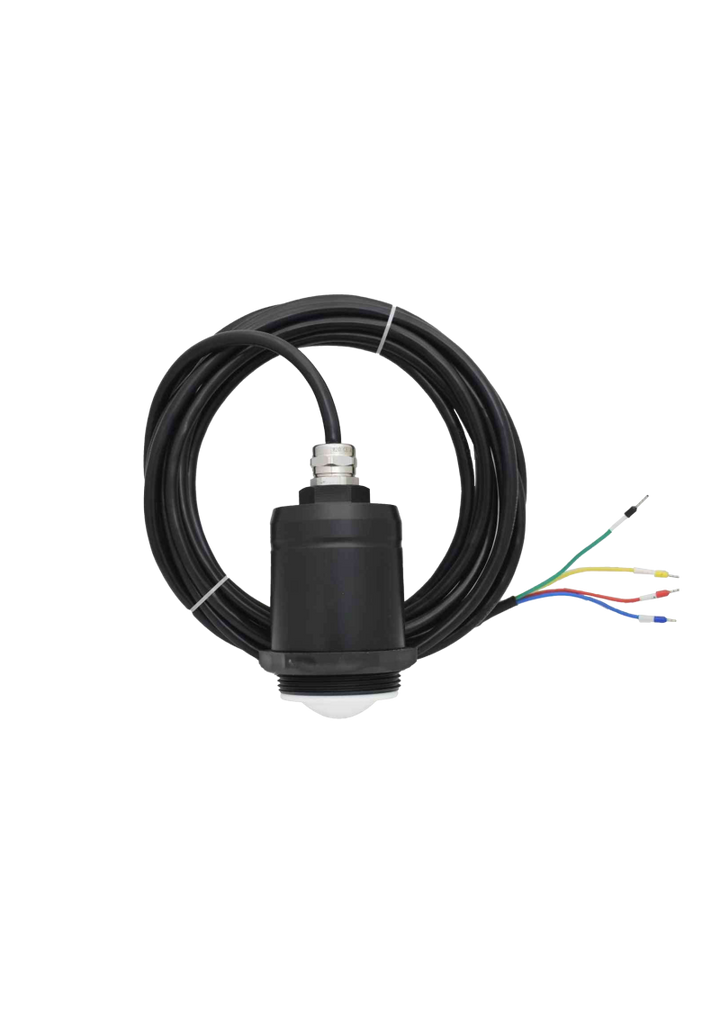

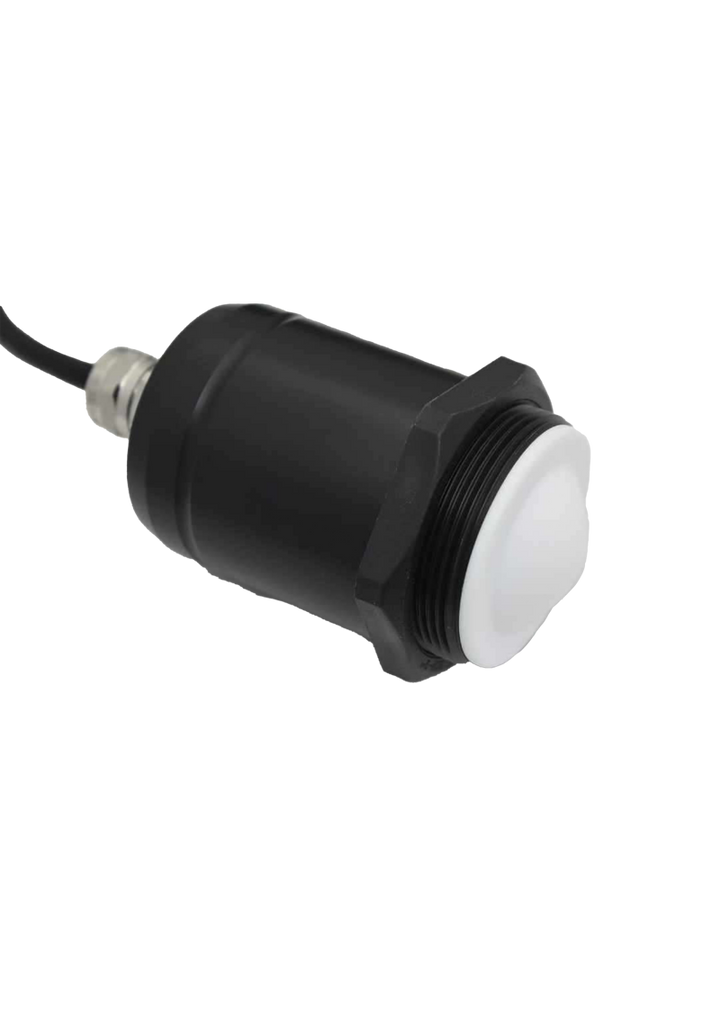

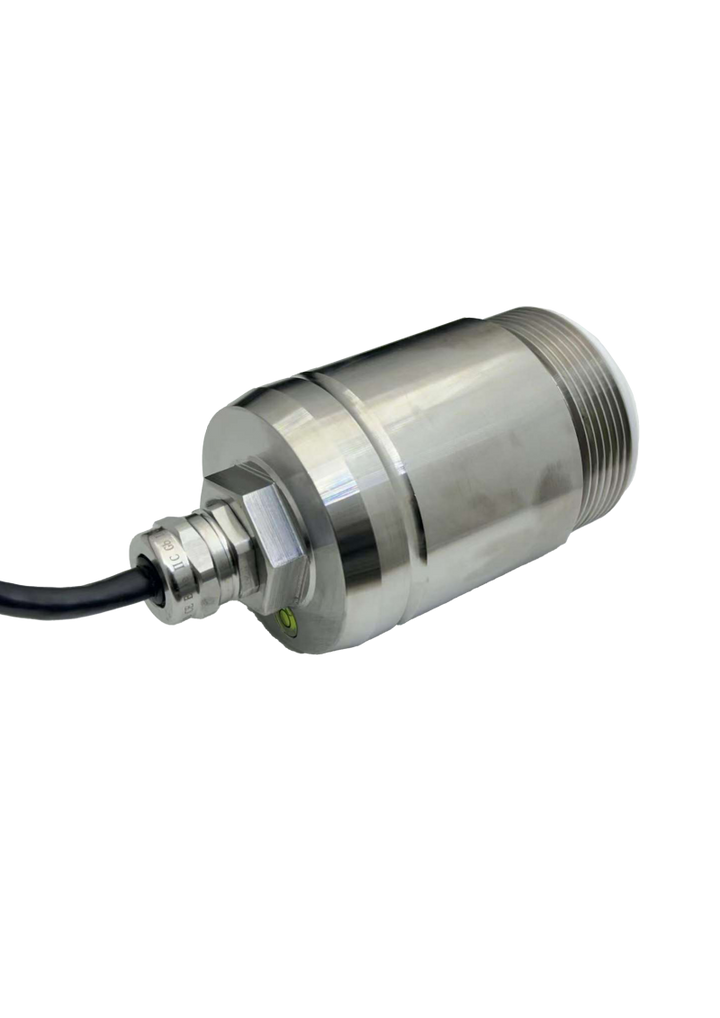

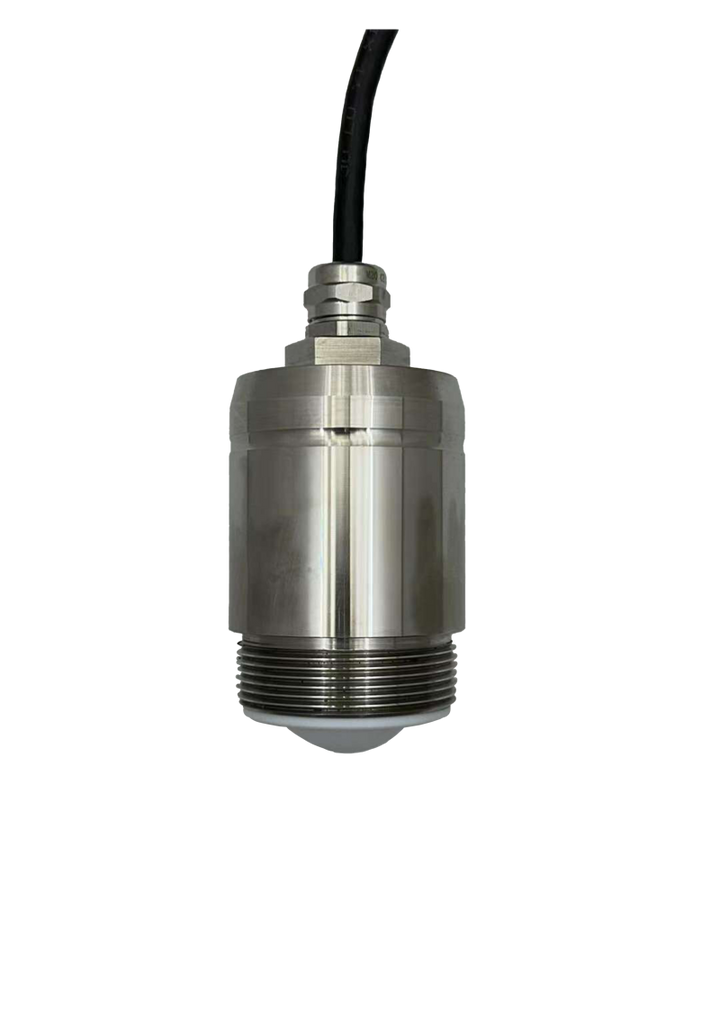

Radar Water Level Gauge Non-contact Radar Level Meter 80GHz High Frequency Radar Level Sensor High Precision Water Level Measurement

$158.00

Housing Material: PP or ABS

PP or ABS
SS304

Output Signal: RS485+Bluetooth

RS485+Bluetooth
4-20mA+Bluetooth

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Level Measurement 推荐产品
Tags: Level Meter Level Sensor Radar Level Water Level
Description

            • Essential Specifications:
              Measuring Medium: Water
              Radar Frequency: 76GHz~81GHz
              Beam Angle: 8°
              Dead Zone: 0.1m
              Power Supply: 4 wire system=12V DC; 2 wire=24V DC
              Measuring Range: 0~85m
              Measurement Accuacy: ±2mm
              Output Signal: 2 wire 4-20mA; 4 wire RS485; Relay
              Working Temperature: -40~80℃
              Working Pressure: ordinary pressure
              Process Connection: G1-1/2 thread
              Cable Length: 5m default, longer length is optional
              Antenna Material: POM; PTFE
              Housing Material: POM; ABS; SS304
              Response Time: >= 300 ms
              Waterproof Grade: IP68







              • Highlight Points Before Order:

                Measuring Medium
                Measuring Range
                Output Signal
                Medium Temperature
                Process Connection
Additional Information
Housing Material

PP or ABS, SS304
Output Signal

RS485+Bluetooth, 4-20mA+Bluetooth
