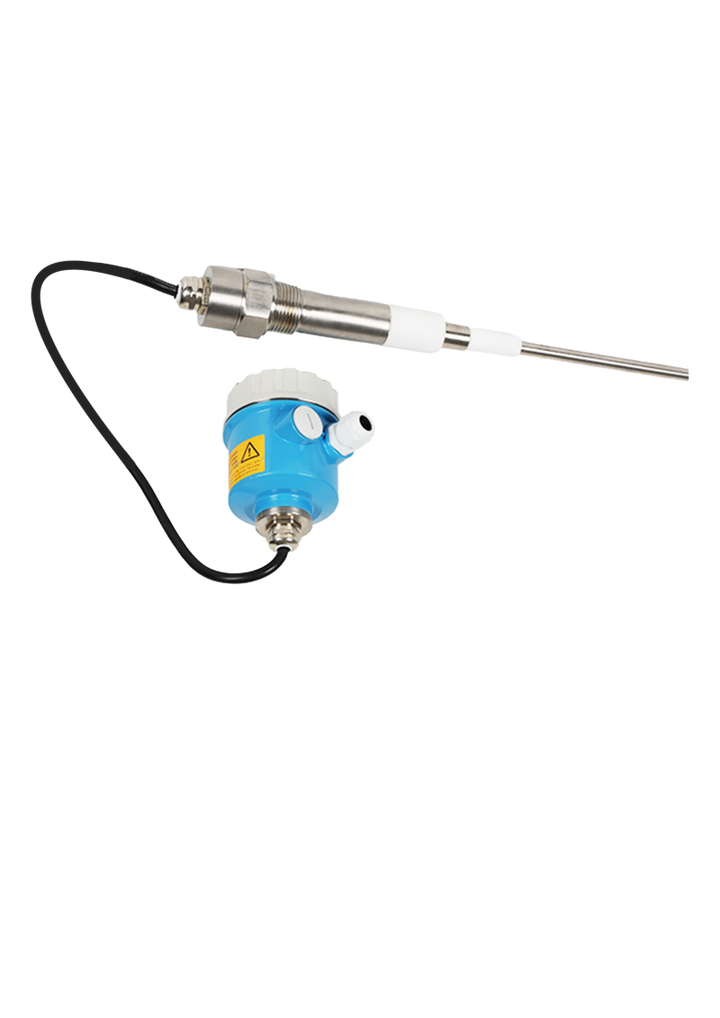

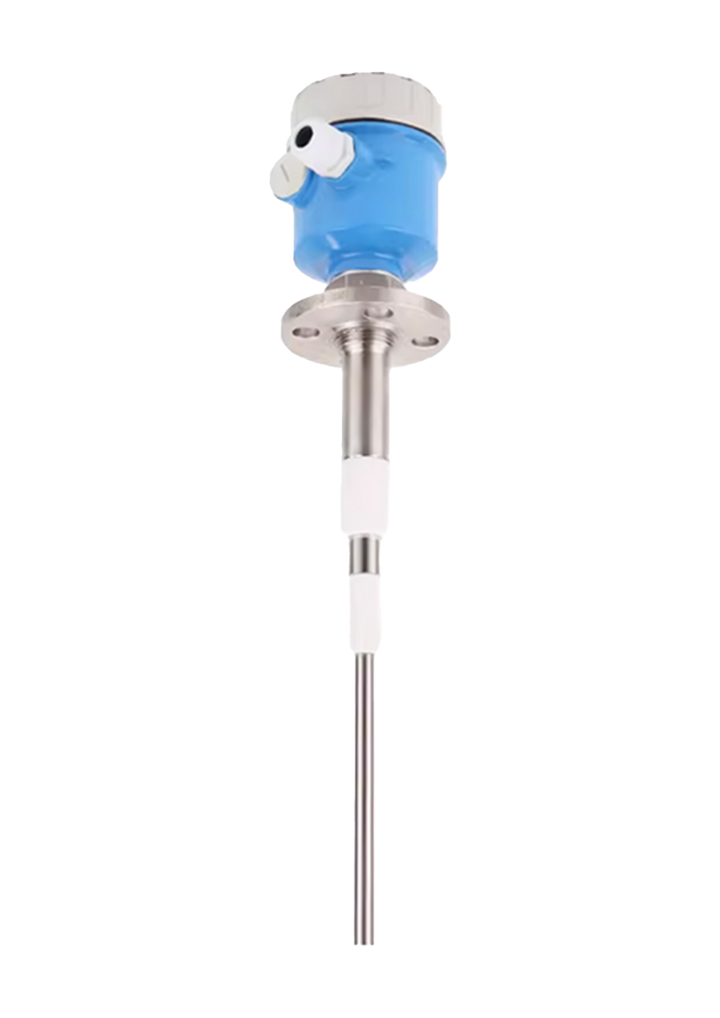

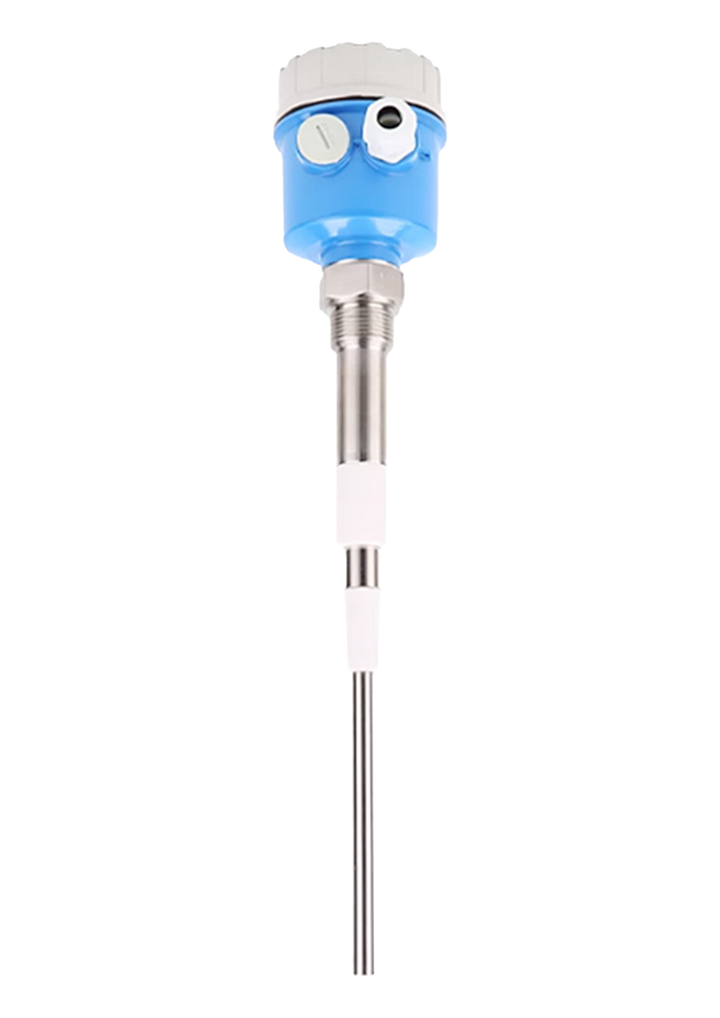

Radio Frequency Admittance Level Switch High Sensitivity Level Meter Solid Liquid Level Switch Anti-stacking Anti-clogging
Description
-
-
-
-
-
-
Essential Specifications:
Measuring Medium: Liquids; Solids
Power Supply: 24V DC; 110VAC; 220V AC
Insertion Length: 65mm to 580mm (without thread length)
Output Signal: DPDT (5A/250VAC); PNP or NPN
Working Temperature: -20~80℃; -20~200℃; up to 800℃
Working Pressure: -0.1~2.0 MPa
Process Connection: 1" PT Thread; Flange; Tri-clamp
Electrical Interface: M20*1.5
Probe Types: Single Rod; Rope Type
Probe Material: SS304, SS316
Insulation Material: PTFE
Operationg Delay: 0~90s
Waterproof Grade: IP65
Explosionproof Grade: Ex db IIB T6
-
Highlight Points Before Order:
Measuring Medium
Insertion Length
Output Signal
Medium Temperature
Process Connection
Probe Types & Material
-
-
-
-
-
Radio Frequency Admittance Level Switch High Sensitivity Level Meter Solid Liquid Level Switch Anti-stacking Anti-clogging
$116.00
