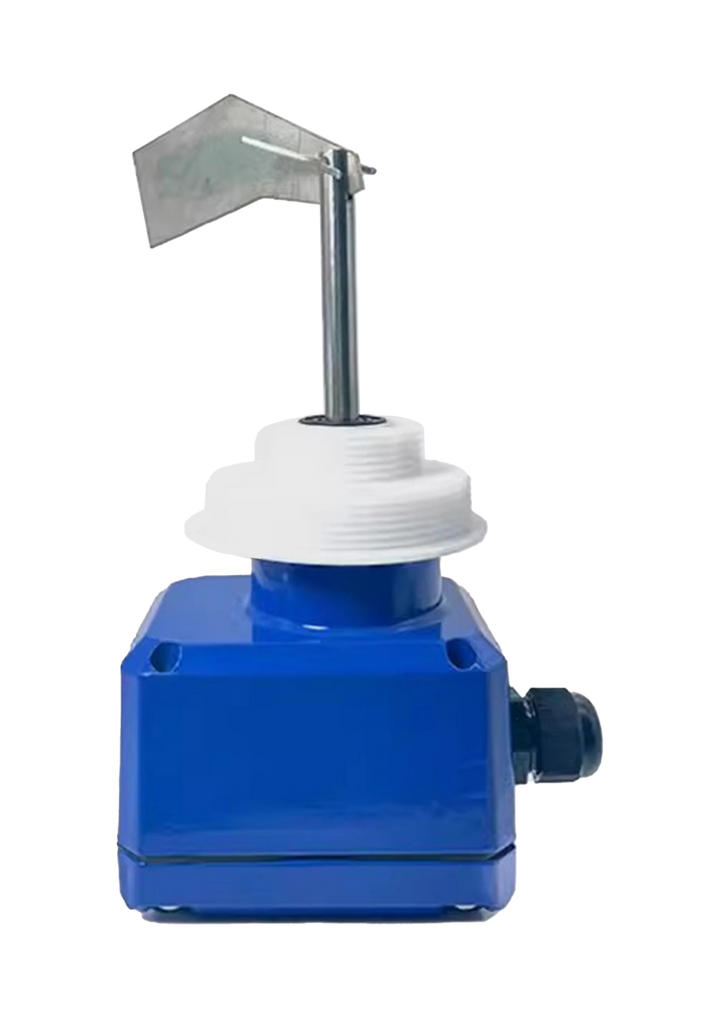

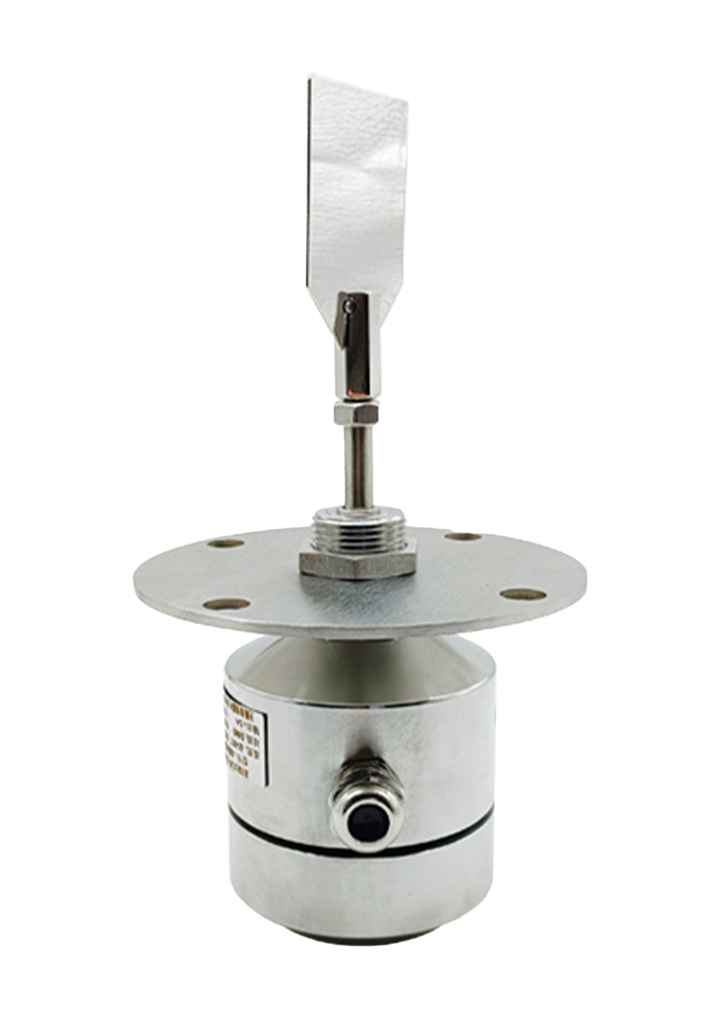

Rotary Paddle Level Switch Solid Liquid Level Switch Cheap Cost Multiple Applications Level Controller Level Alarm High Sensitivity Level Meter
Description
-
-
-
-
-
-
Essential Specifications:
Measuring Medium: Solids
Power Supply: 24V DC; 110VAC; 220V AC
Insertion Length: 90mm (Default); other lengths
Output Signal: SPDT (5A/250VAC)
Working Temperature: -20~80℃; -20~200℃
Working Pressure: -0.1~2.0 MPa
Torque: 0.1~1 kg.cm; 30~100 g.cm
Specific Gravity: 0.5 g/cm3; 0.3 g/cm3
Rotate Speed: 1 RPM
Process Connection: >=3/4" Thread; Flange
Electrical Interface: M20*1.5
Probe Types: A, B, C, D, E (refer to graphics)
Probe Material: SS304, SS316
Waterproof Grade: IP65
-
Highlight Points Before Order:
Measuring Medium
Power Supply
Insertion Length
Output Signal
Medium Temperature
Process Connection
Probe Types & Material
-
-
-
-
-
Rotary Paddle Level Switch Solid Liquid Level Switch Cheap Cost Multiple Applications Level Controller Level Alarm High Sensitivity Level Meter
$21.30
