Thermal Mass Flow Meter Compressed Air Gas Flow Measurement High Precision Flowmeter Free Maintenance Air Flow Transmitter

$425.00

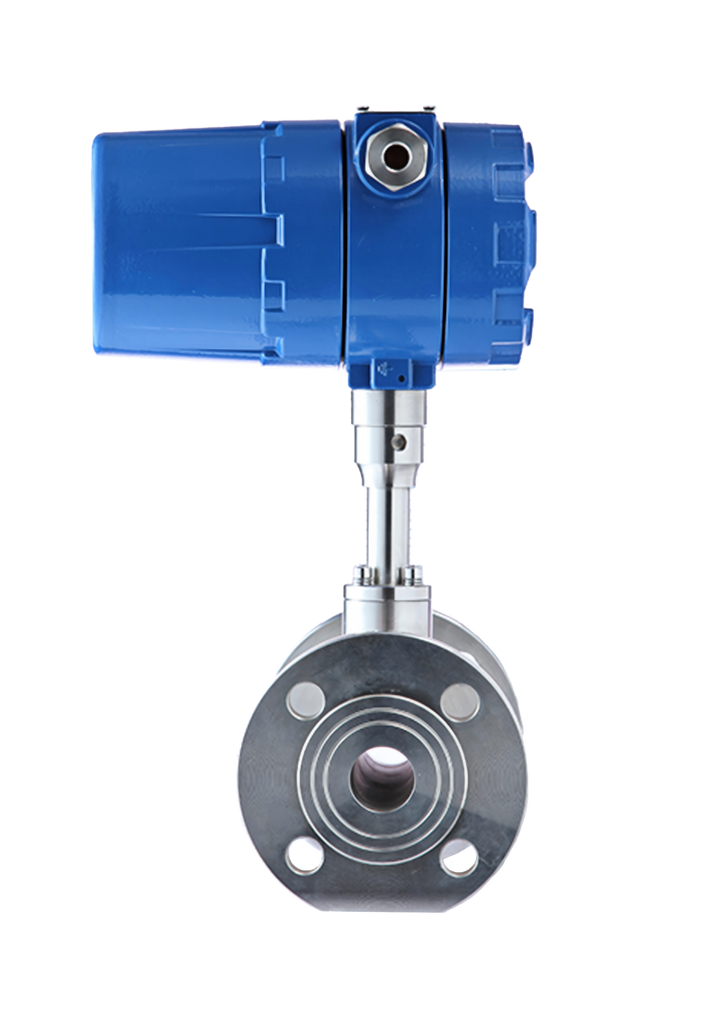

Construction: Flange Inset

Flange Inset
Rod Insertion

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Flow Measurement Instruments
Tags: Air Flow Flow Meter Flow Transmitter Flowmeter Gas Flow
Description

            • Essential Specifications:

              Measuring Medium: Gas or air, except acetylene
              Power Supply: 18~32V DC; 110V AC; 220V AC
              Nominal Diameter: DN32~DN2000
              Nominal Pressure: <2.0MPa; <4.0MPa
              Measuring Range: 0.05 to 100m/s of gas speed; 0~5000m3/h of flow range
              Measurement Accuacy:±1.5%F.S
              Repeatability: 0.2%F.S
              Output Signal: 4-20mA; RS485; Relay
              Working Temperature: medium, 0~100℃; -10~150℃; -30~200℃; convertor, -25~55℃
              Wetted Material: SS304; SS316; Austenitic stainless steel
              On-site Display: integrated LCD
              Process Connection: Welded Flange; Insertion Type
              Electrical Interface: M20*1.5
              Waterproof Grade: IP65





            • Highlight Points Before Order:

              Measuring Medium
              Pipe Diameter
              Flow Range
              Output Signal
              Process Connection
              Operating Pressure
              Operating Temperature
Additional Information
Construction

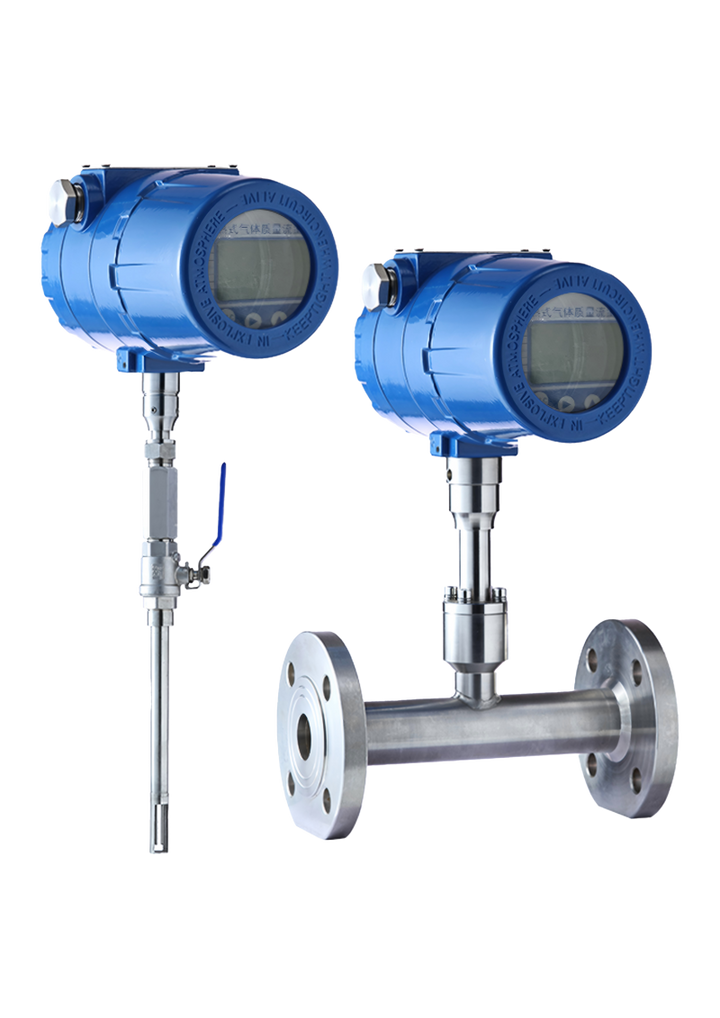

Flange Inset, Rod Insertion
Reviews
