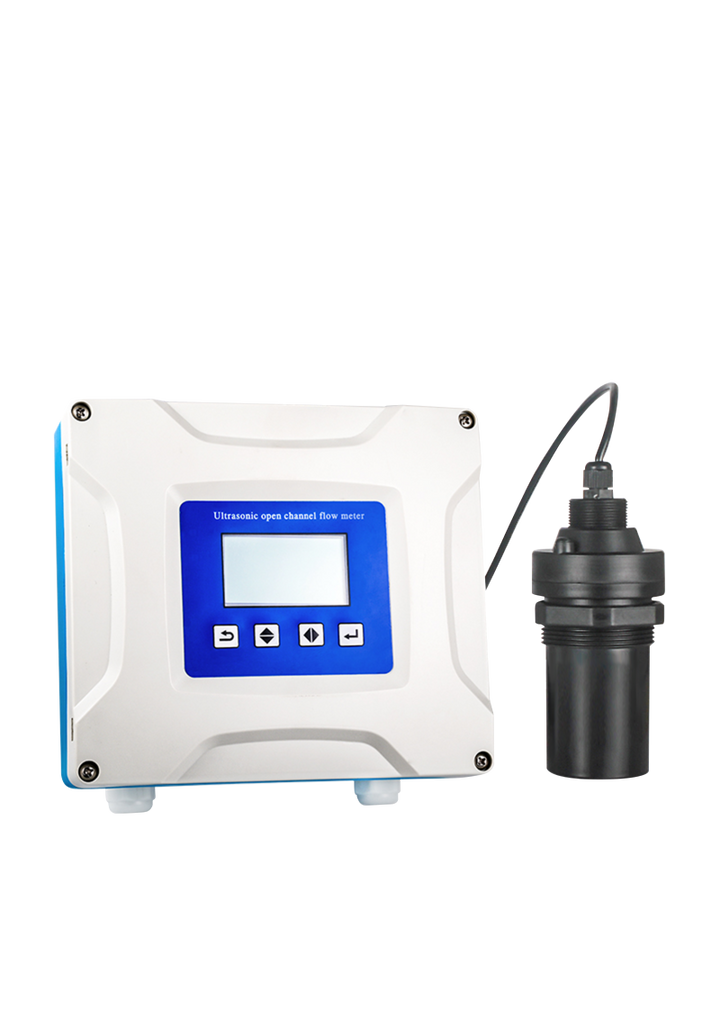

Ultrasonic Open Channel Flow Meter Drainage Channel Water Flow Measurement Ultrasonic Ranging Principle for Measuring Open Channel's Flow Work with Standard Measurement Flumes

$232.00

Level Sensor: Ultrasonic Sensor

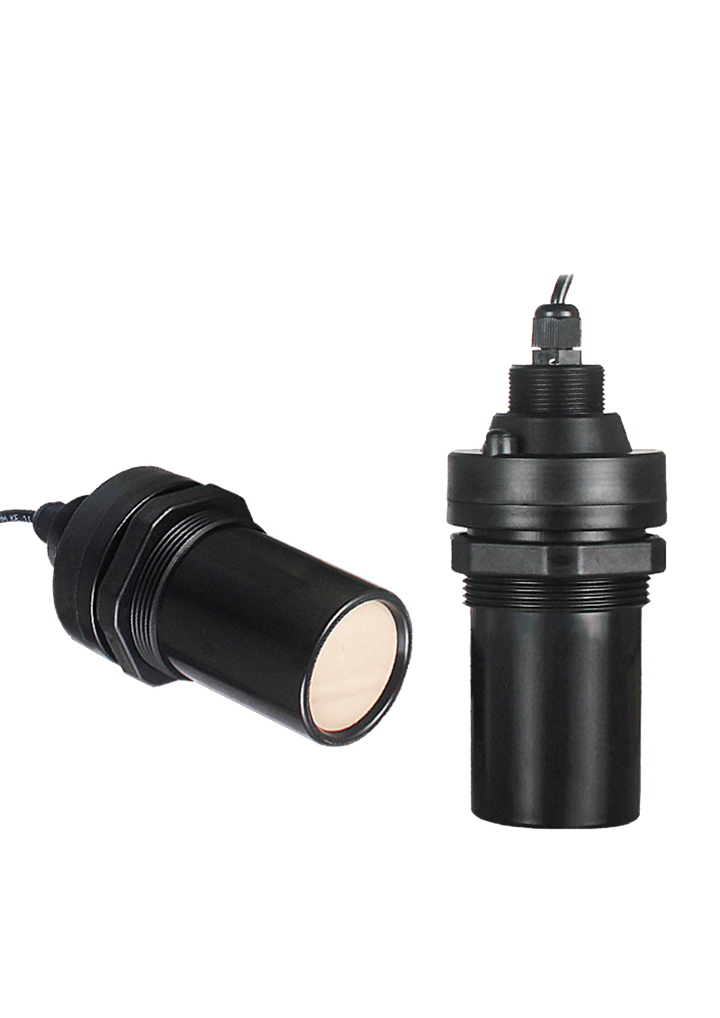

Ultrasonic Sensor
Radar Sensor

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Flow Measurement Instruments
Tags: Flow Meter Flow Transmitter Flowmeter Liquid Flow Open Channel's Flow Water Flow
Description

            • Essential Specifications:

              Power Supply: 12VDC; 24V DC; 220V DC (universal wide voltage range is customizable)
              Measuring Range: 0.1L/s to 10 m3/s
              Cumulative Flow: 999,999,999,999m3
              Measurement Accuacy:level, ±3mm; flow, ±5% of displayed value, max.
              Level Range: 0.35~3m
              Dead Zone: 0.35~0.5m
              Level Resolution: 1mm
              Output Signal: 4-20mA; RS485
              Working Temperature: -30~60℃
              Working Pressure: Atmosphere

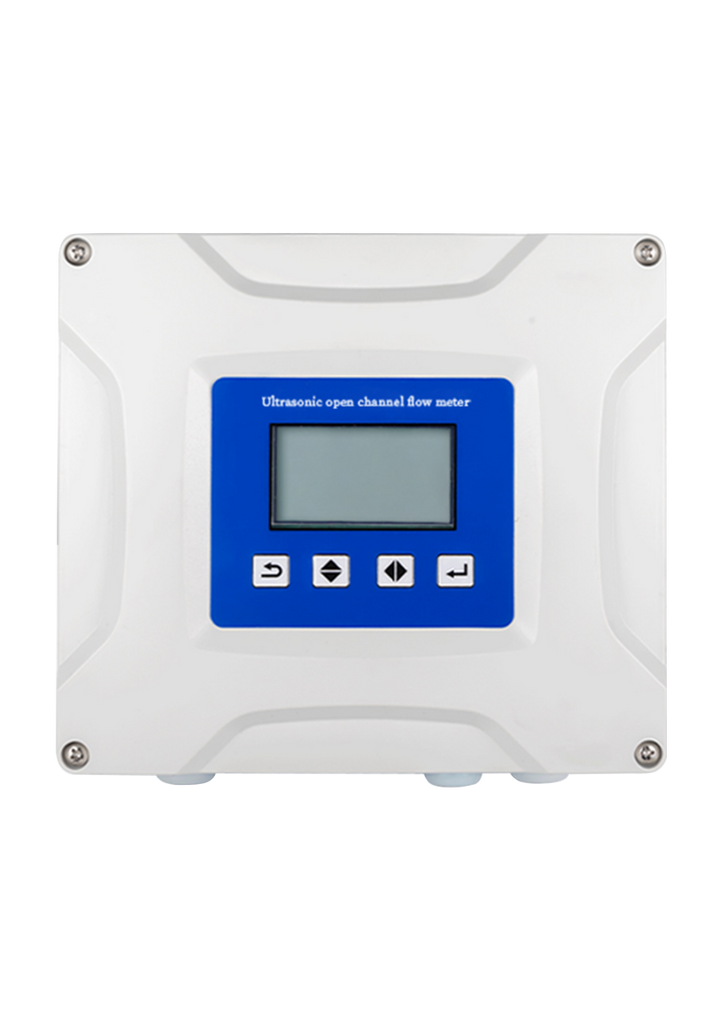

              On-site Display: Separated LCD
              Process Connection: G2 thread
              Electrical Interface: M20*1.5
              Cable Length: 10m (longer is optional)
              Waterproof Grade: IP67, IP68 for ultrasonic transducer; IP66 for convertor






            • Highlight Points Before Order:

              Channel's Width
              Channel's Depth
              Standard Flumes
              Output Signal
Additional Information
Level Sensor

Ultrasonic Sensor, Radar Sensor
