Ultrasonic Pipe Flow Meter Clamp-on Ultrasonic Pipeline Flowmeter Ultrasonic BTU Meter Dual or Four Sound Channels Ultrasonic Flowmeter
Description
-
-
-
-
-
-
Essential Specifications:
Measuring Medium: water, sea water, sewage, ethyl alcohol, various oils, other liquids of homogenous density (no mixed liquids, no too many solid impurities or bubbles)
Measuring Pipes: Steel, SS, cast iron, copper, PVC, PP, others (Appendix 1.1)

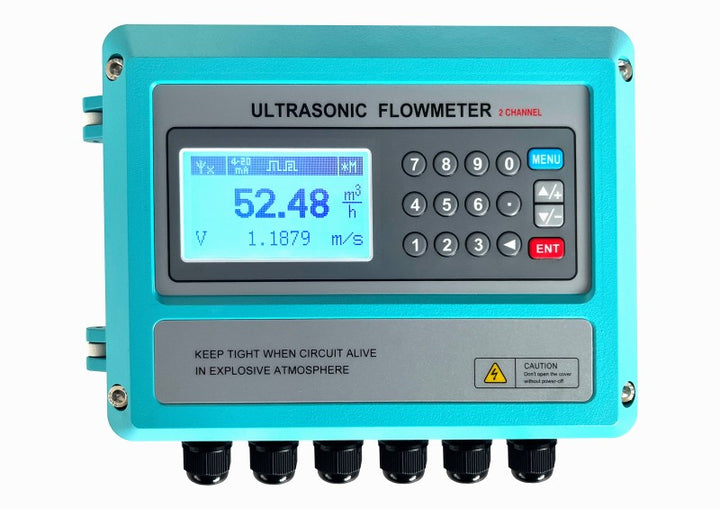

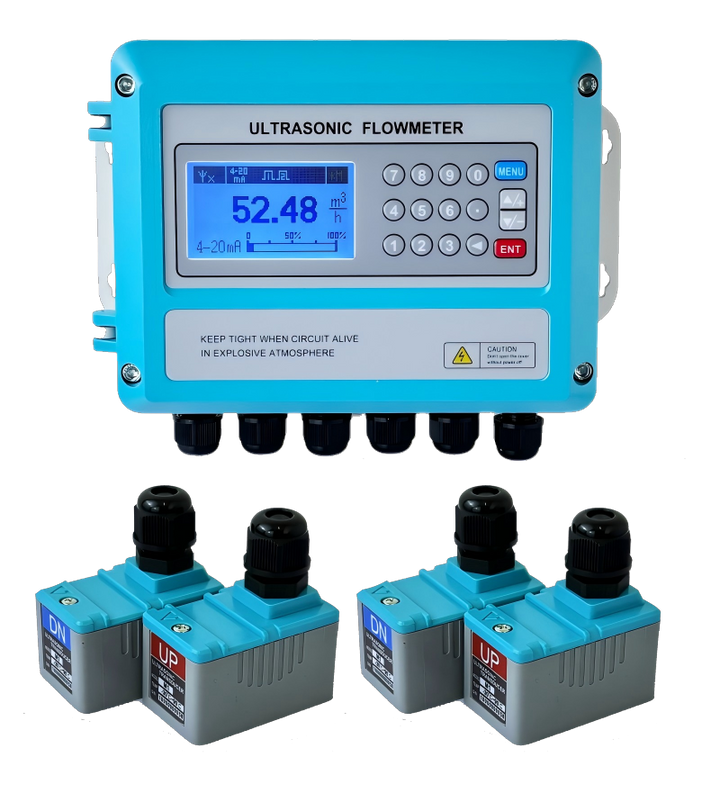

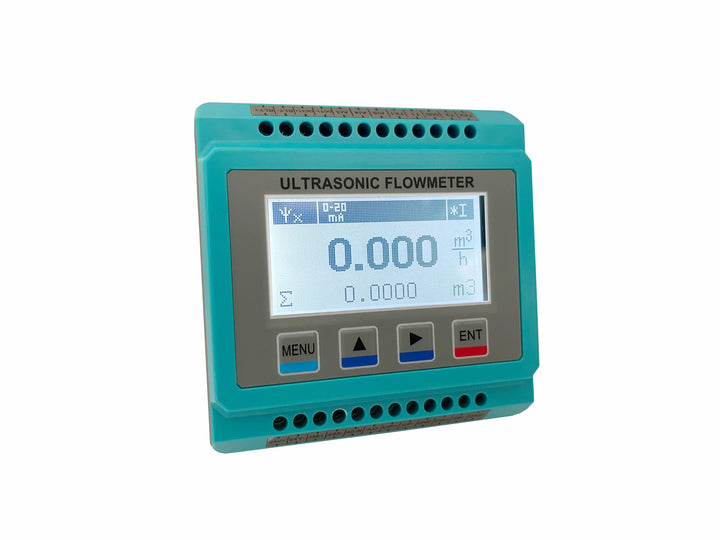

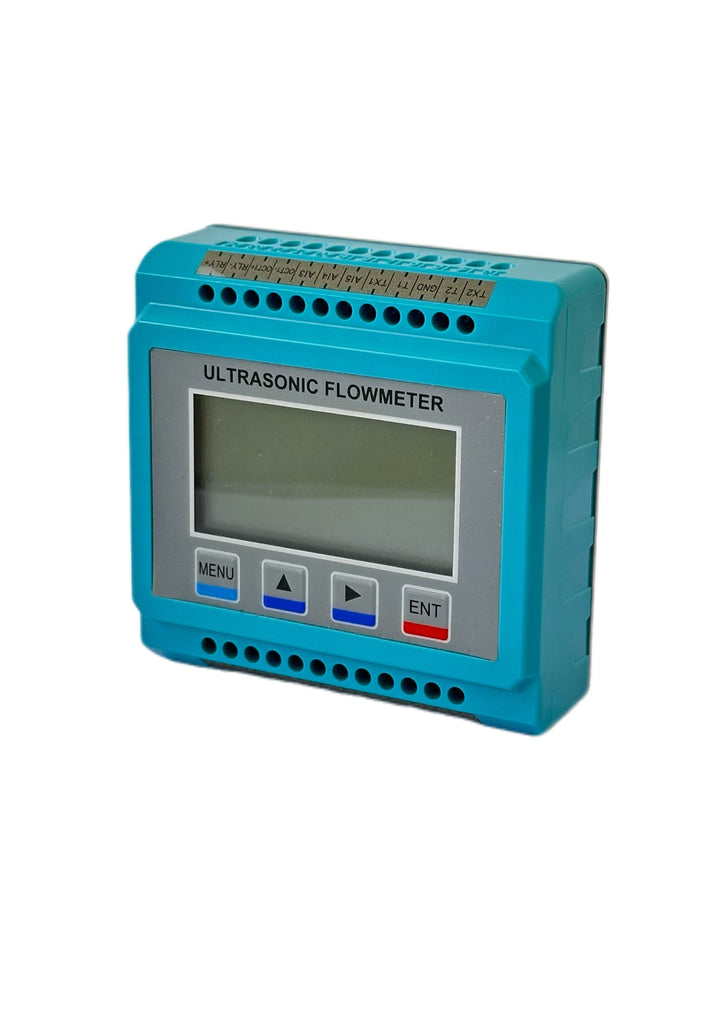

Convertor Types: Wall mounted, Module type; Fixed on pipes; Panel mounted; Explosion-proof

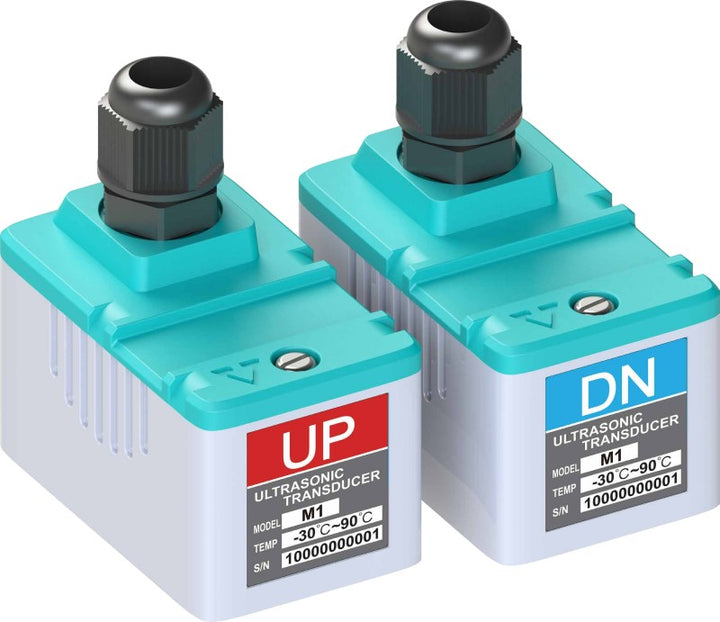

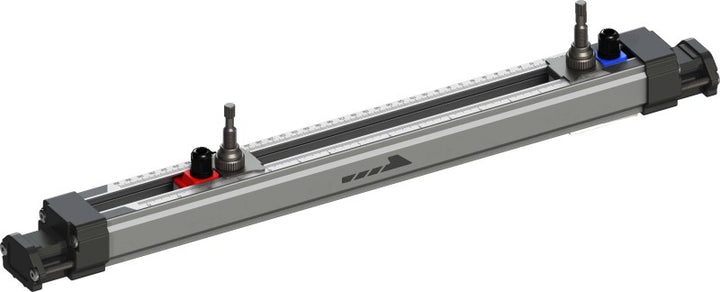

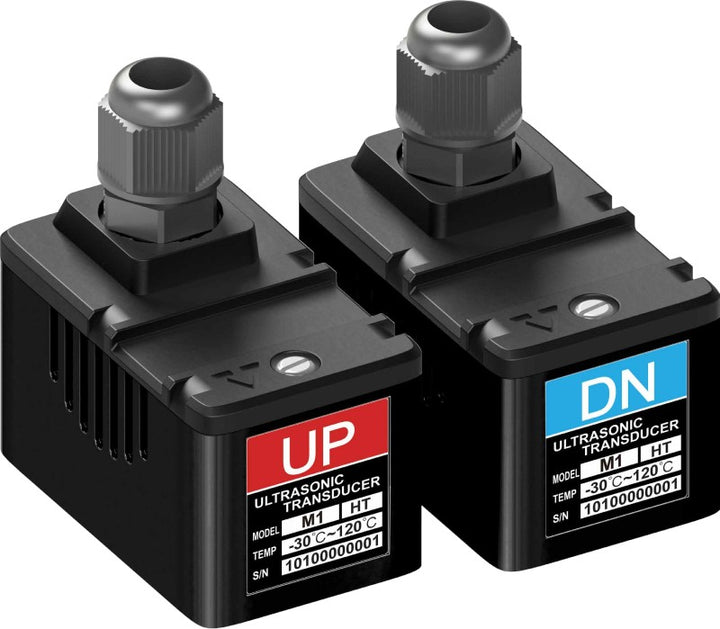

Transducer Types: Normal temperature clamp-on; High-temp clamp-on; Clamp-on with rail holder; Insertion type; Fixed on pipes
Sound Channel: One channel; Two Channels; Four channels
Power Supply: 8~36V DC; 85~264V AC; 10~30V AC; built-in 3.6V battery (handheld type)
Nominal Diameter: DN15~DN6000
Flow Rate: 0.3~10 m/s
Measurement Accuacy:±1%F.S for one channel type; ±0.5%F.S for two/ four channels
Input Signal: 3 channels of 4-20mA/ PT100 (used for heat/ cooling energy measurement)
Output Signal: 1 channel of 4-20mA; 1 channel of OCT; 1 channel of Relay
Working Temperature: -30~90℃ (normal transducer); -30~160℃ (high-temp transducer); -20~60℃ (convertor)
Process Connection: Clamp-on type (with hoops); Insertion type ( with ball valve and base)
Electrical Interface: M20*1.5
Waterproof Grade: IP65; IP67; IP68 (selectable)
Explosionproof Grade: Ex db IIB T5 (only for model with EX convertor)
-
Highlight Points Before Order:
Measuring Medium
Pipe Diameter
Pipe Material
Power Supply
Output Signal
Convertor type
Flow Transducer
-
-
-
-
-
Additional Information
| Convertor Type |
Wall-mounted, Module Type |
|---|
Ultrasonic Pipe Flow Meter Clamp-on Ultrasonic Pipeline Flowmeter Ultrasonic BTU Meter Dual or Four Sound Channels Ultrasonic Flowmeter
$145.00
