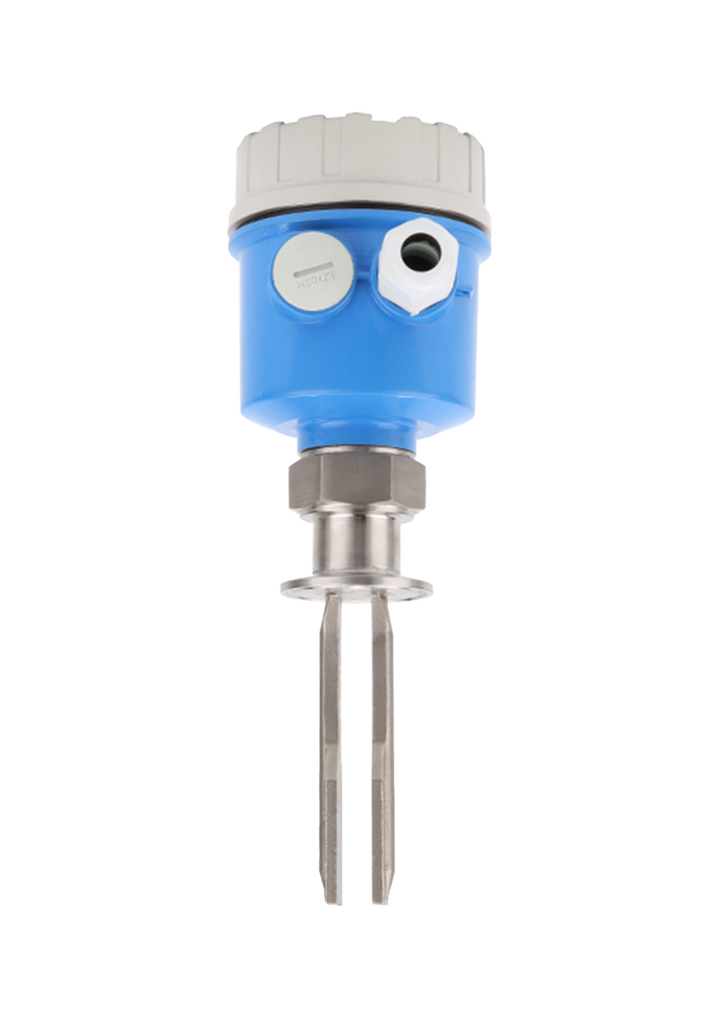

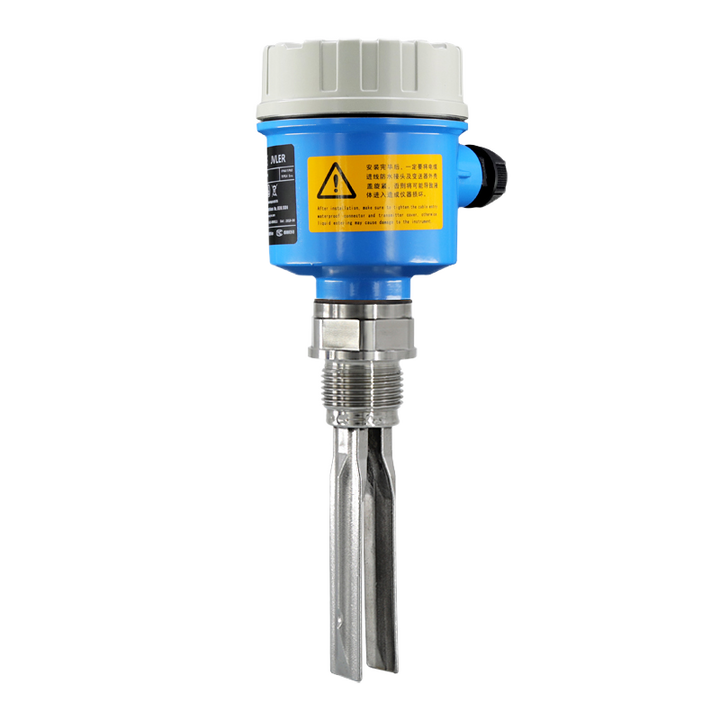

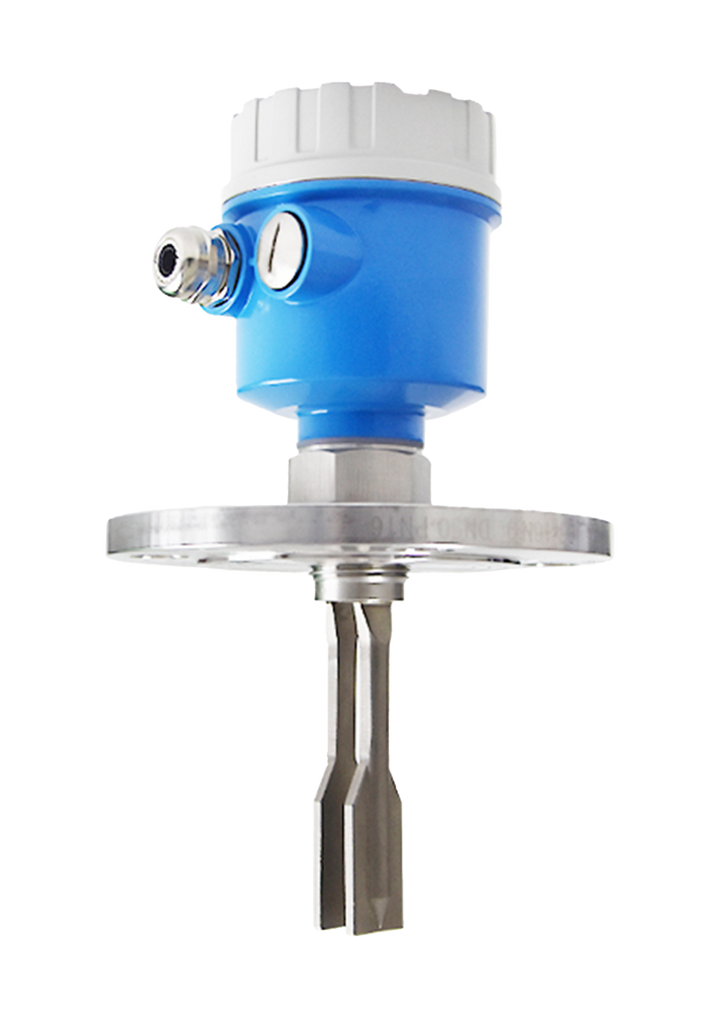

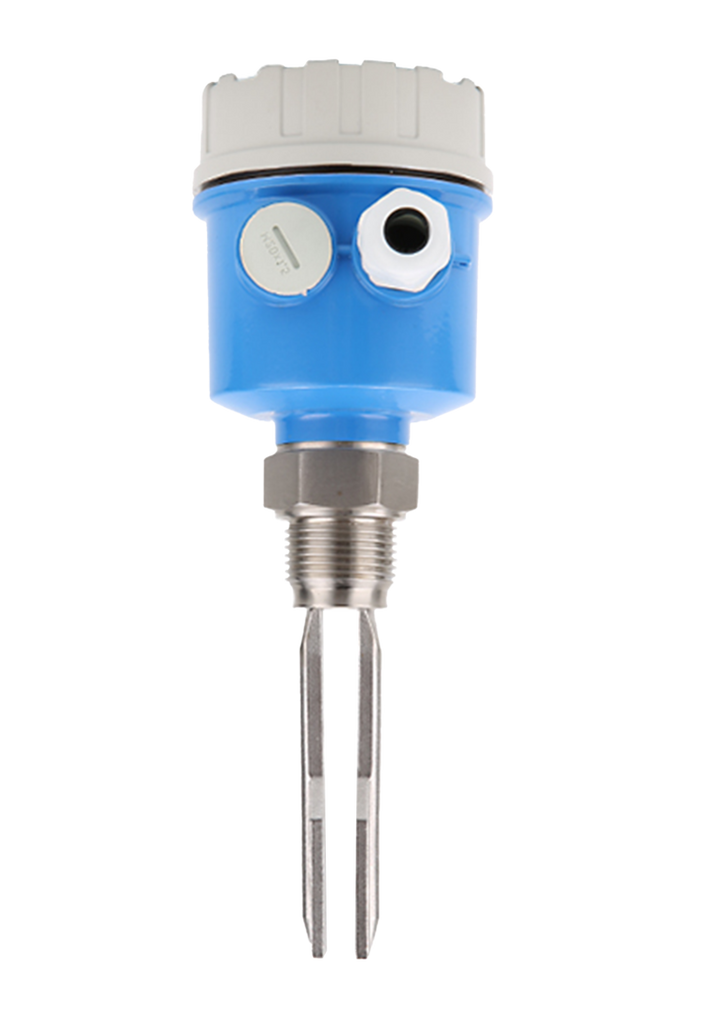

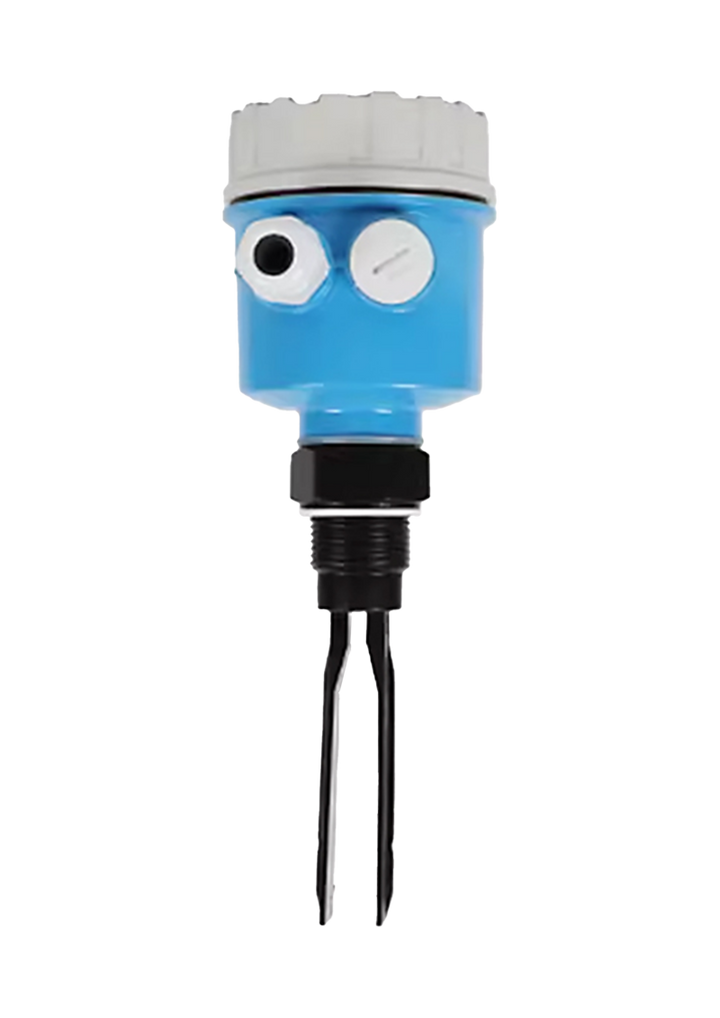

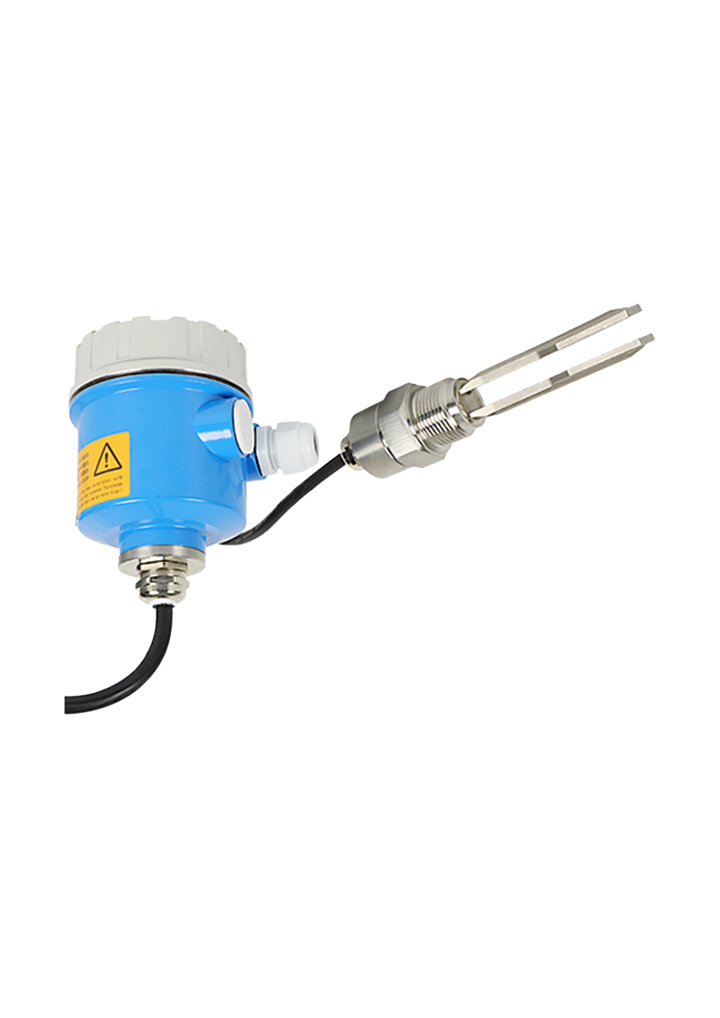

Vibrating Fork Level Switch High Sensitivity Level Meter Solid Liquid Level Switch Anti-stacking Anti-clogging Level Alarm

$78.50

Structure: Big Junction Box

Big Junction Box

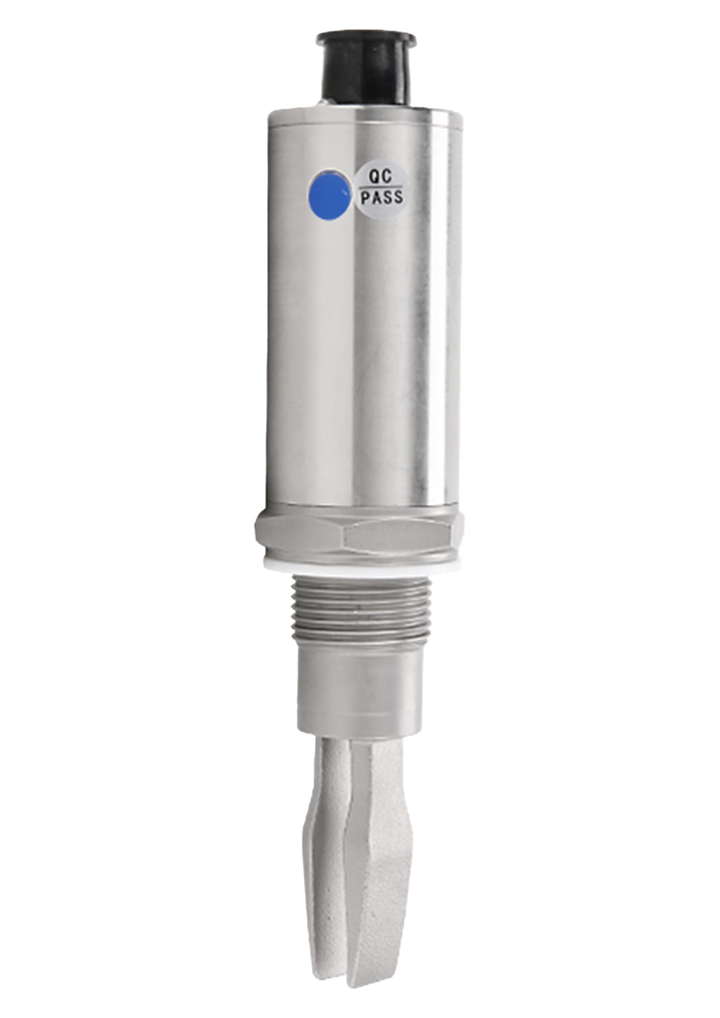

Compact Size

Description


Description

Add to WishlistCompare

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
SKU:
Availability: In Stock Pre order Out of stock
Categories: Instruments Level Measurement 推荐产品
Tags: Corrosive Liquids Level Level Alarm Level Sensor Level Switch Solid Level Water Level
Description

            • Essential Specifications:

              Measuring Medium: Liquids; Solids
              Power Supply: 24V DC (compact model); 22~250V AC/DC (junction box model)
              Insertion Length: 40mm to 2000mm (without thread length)
              Output Signal: SPDT (5A/250VAC); PNP or NPN
              Working Temperature: -20~80℃; -20~200℃
              Working Pressure: -0.1~2.0 MPa
              Specific Gravity: 0.6 g/cm3
              Process Connection: >=1/2" thread; Flange; Tri-clamp
              Electrical Interface: M20*1.5 (junction box model); DIN connector or circular connector (compact model)
              Probe Material: SS304; SS316; SS with PTFE coating
              Waterproof Grade: IP65
              Explosionproof Grade: Ex db IIB T6







            • Highlight Points Before Order:
              Measuring Medium
              Power Supply
              Insertion Length
              Output Signal
              Medium Temperature
              Process Connection
              Electrical Interface
              Probe Types & Material
Additional Information
Structure

Big Junction Box, Compact Size
