Vortex Flow Meter Air Gas Steam Flow Measurement High Temperature Vapour Flowmeter Explosion-proof Oil Gas Flow Transmitter
Description
-
-
-
-
-
-
Essential Specifications:
Measuring Medium: Gas; air; liquids; steam
Power Supply: 12VDC; 24V DC; 3.6V DC battery (optional)
Nominal Diameter: DN25~DN300 (flange or clamping type); DN150~DN3000 (insertion type)
Nominal Pressure: 1.6MPa~4.0MPa (higher pressure is customizable)
Measuring Range: gas or steam, 5 to 50m/s (up to 65m/s); liquids, 0.5 to 5m/s (up to 7m/s); check attached tables for detailed flow ranges
Measurement Accuacy:±1.5%F.S or ±1%F.S (flange or clamping type); ±2.5%F.S (insertion type)
Output Signal: Pulse; 4-20mA; RS485
Working Temperature: medium, -25~120℃; up to 350℃; convertor, -25~60℃
Wetted Material: SS304; SS316
Features: Compensation of temperature and pressure; Automatic conversion to nominal flow for gas or steam measurement
On-site Display: integrated LCD

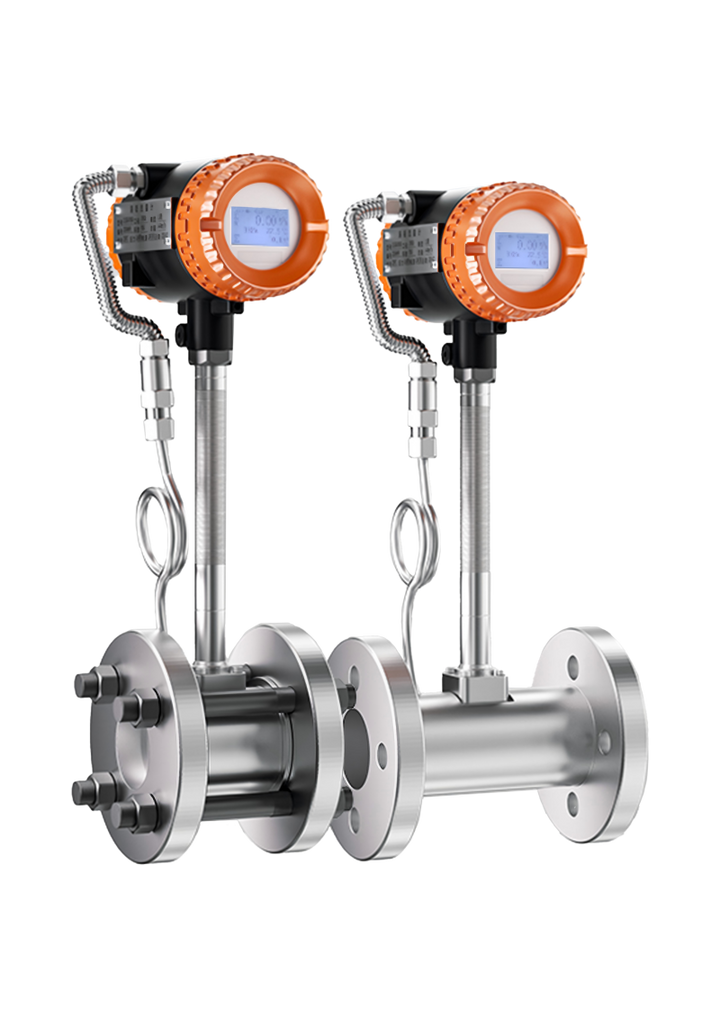

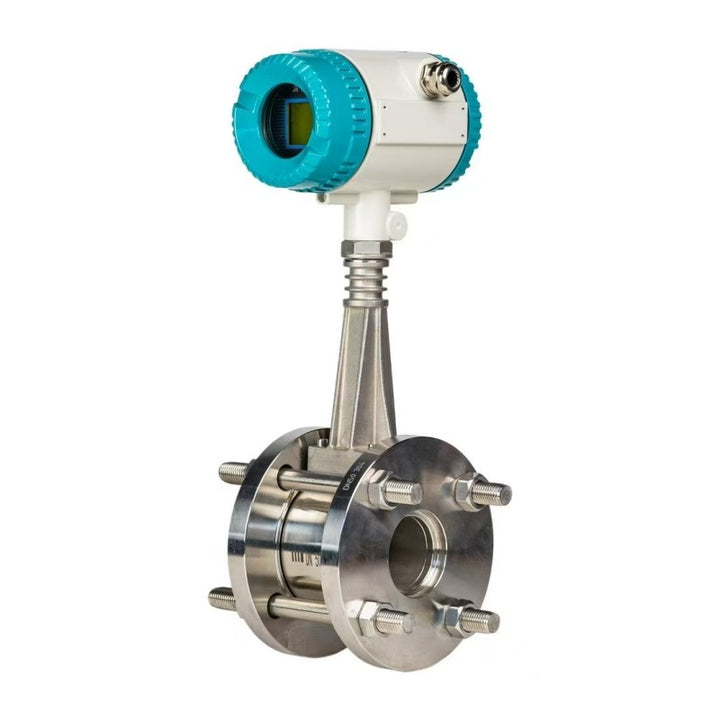

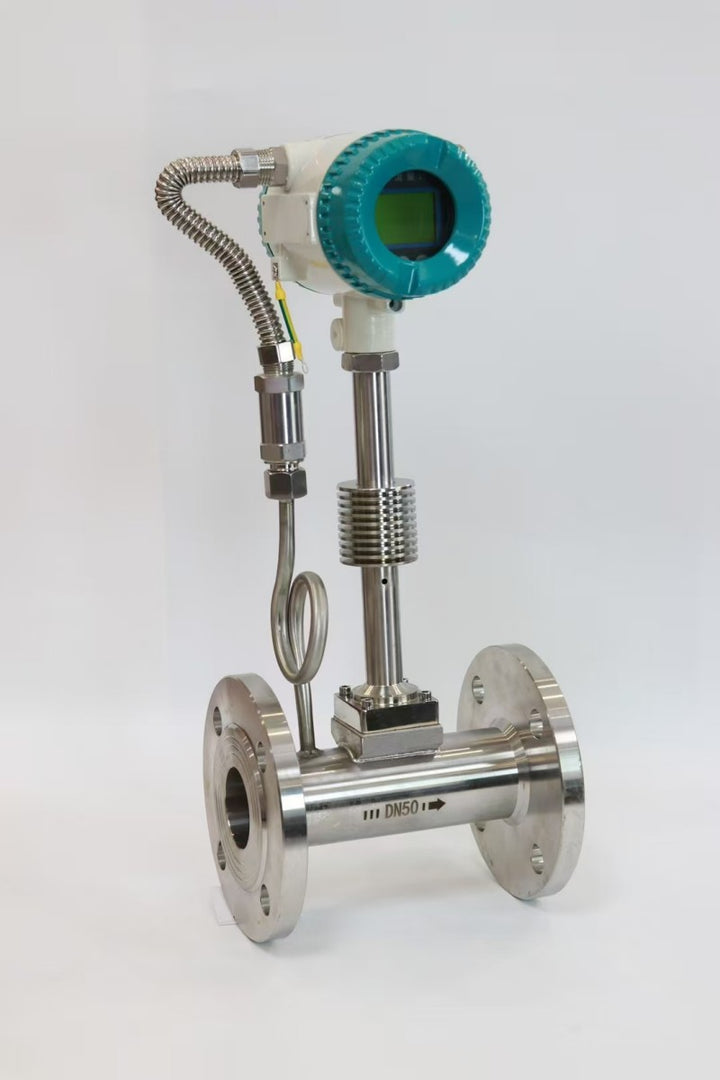

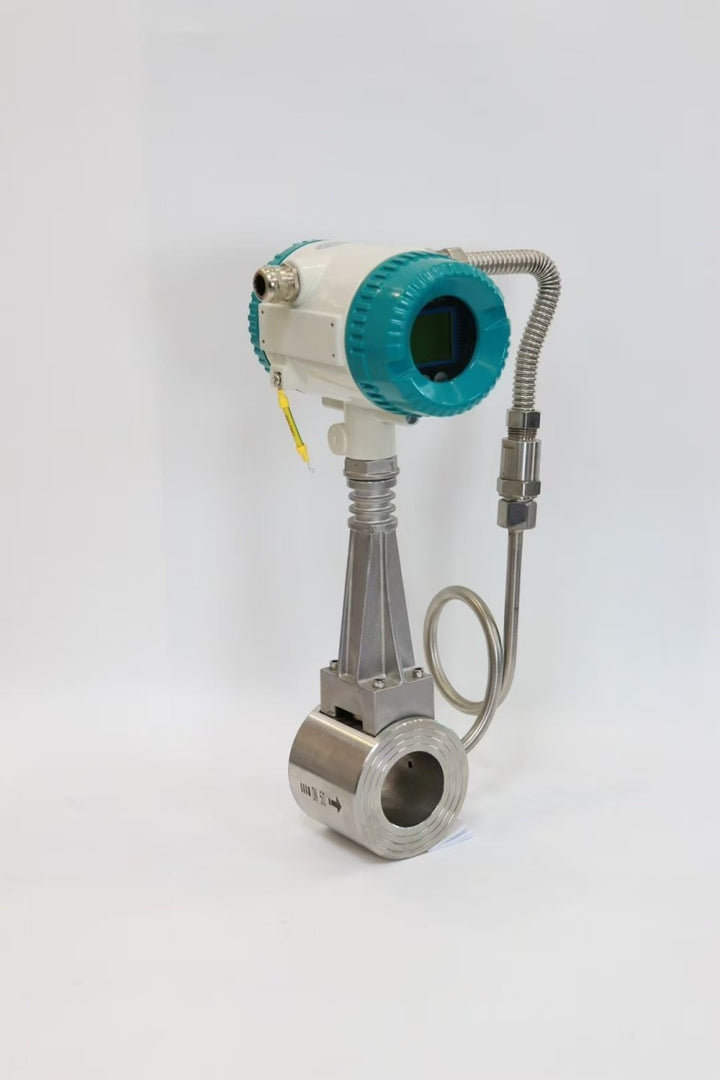

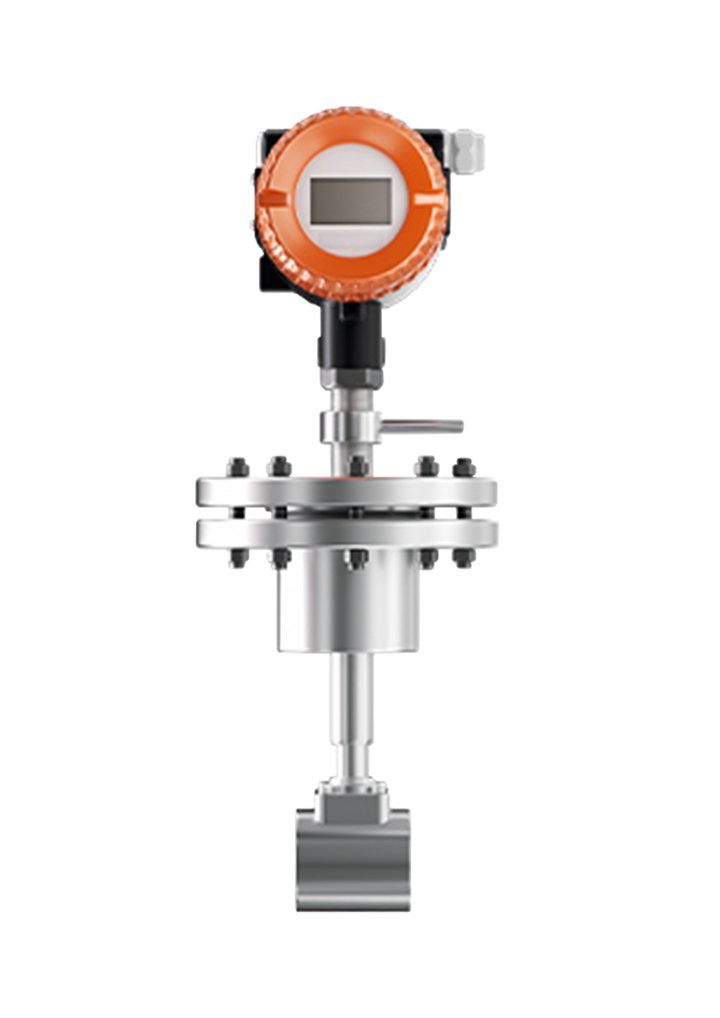

Process Connection: Welded Flange; Clamping Type; Insertion Type
Electrical Interface: M20*1.5
Waterproof Grade: IP65
Explosionproof Grade: Ex ia IIC T6
-
Highlight Points Before Order:
Measuring Medium
Pipe Diameter
Flow Range
Output Signal
Process Connection
Operating Pressure
Operating Temperature
-
-
-
-
-
Vortex Flow Meter Air Gas Steam Flow Measurement High Temperature Vapour Flowmeter Explosion-proof Oil Gas Flow Transmitter
$378.00
